Ignition System: Diagrams

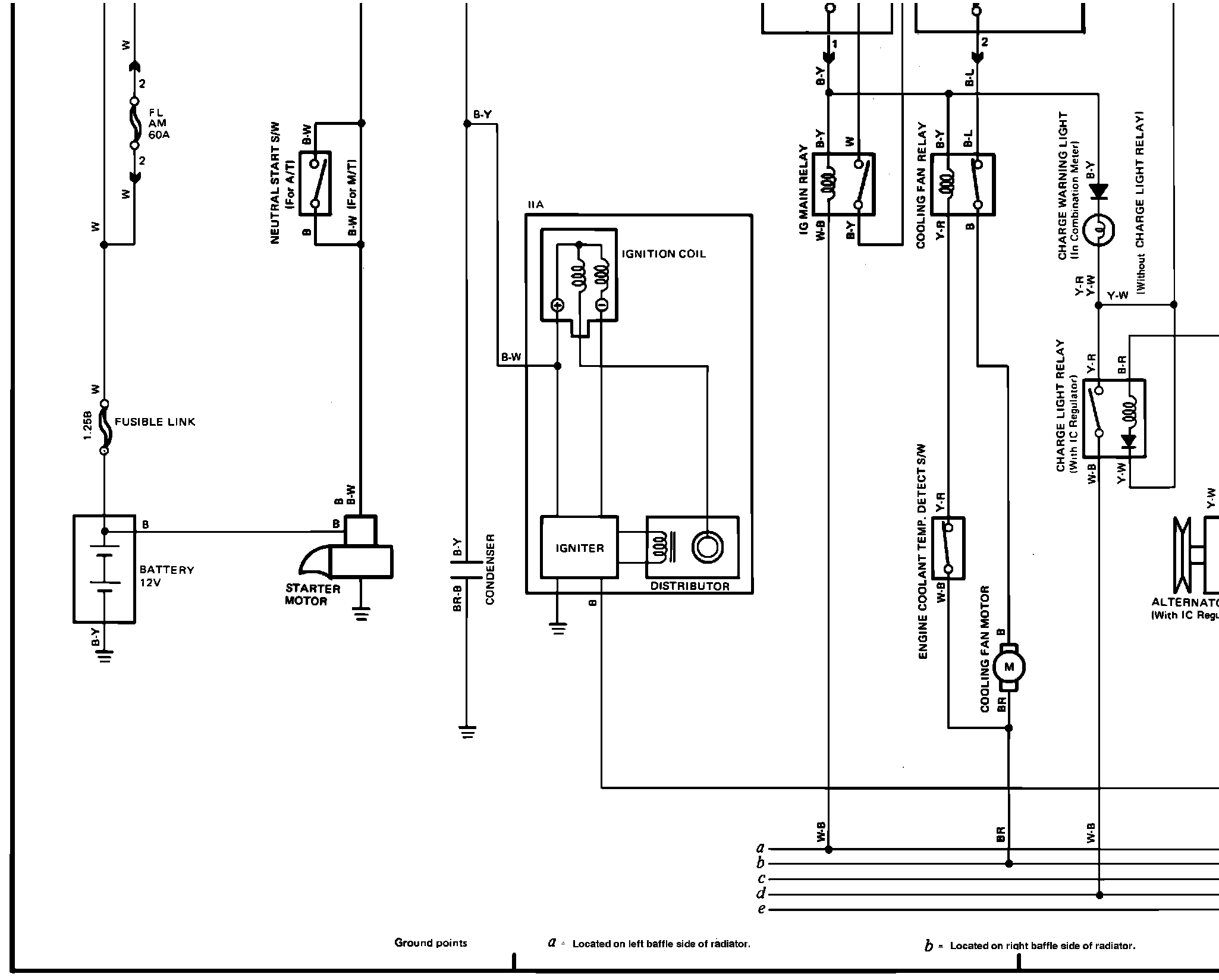

�I�$J�PJ�]J�nJyzJ�JFig. 52a Power Supply, Starting System, Ignition System, Engine Cooling Fan, Charging System, Emission Control System, Heating & A/C, and Combination Meter Wiring Diagram:
