Wiring Diagrams

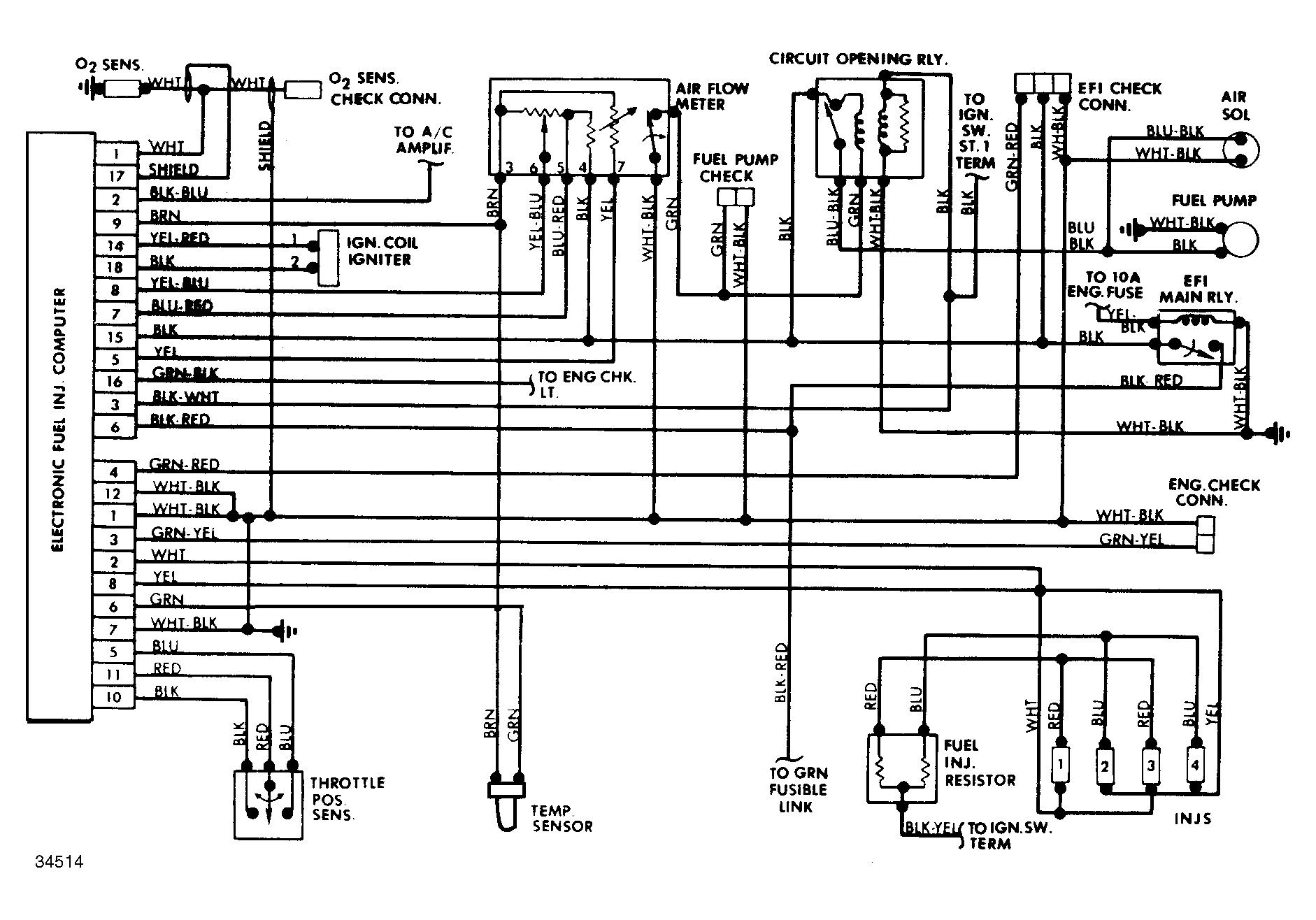

Fig 1: Fuel Injection Wiring Diagram (Starlet)
G34514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

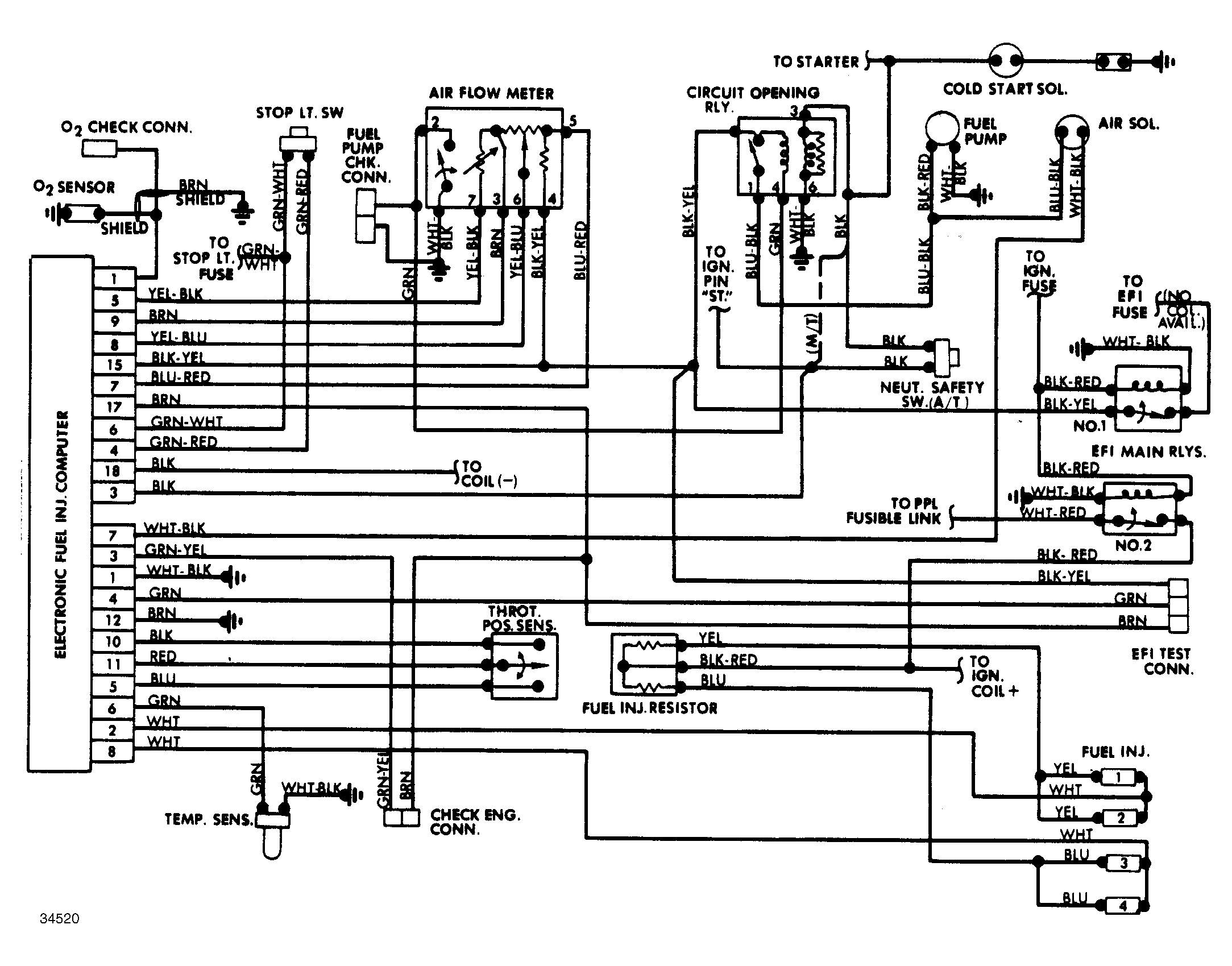

Fig 2: Fuel Injection Wiring Diagram (Celica)
G34520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

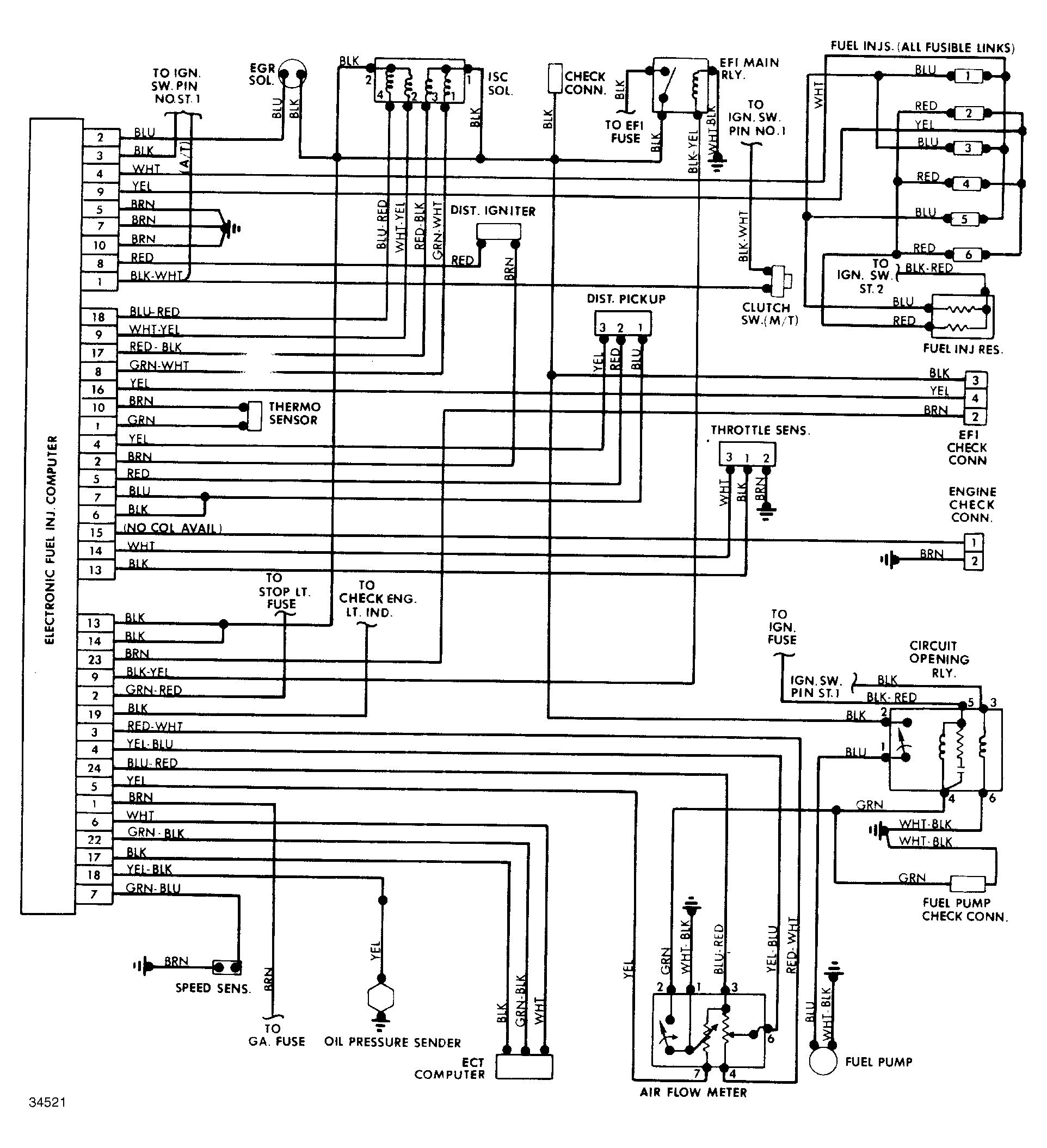

Fig 3: Fuel Injection Wiring Diagram (Cressida)
G34521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

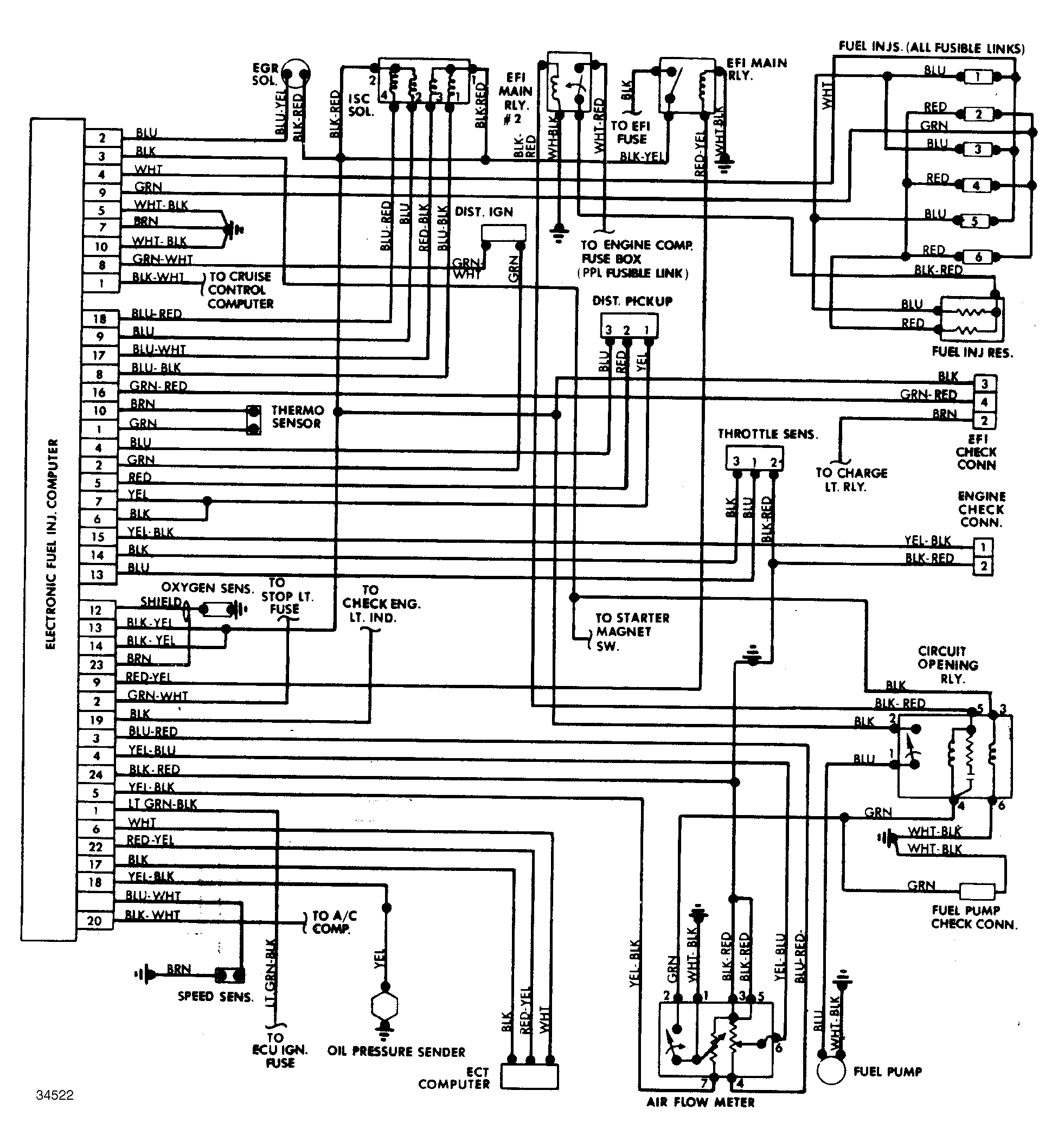

Fig 4: Fuel Injection Wiring Diagram (Supra)
G34522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
