Transmission Control Systems: Diagrams

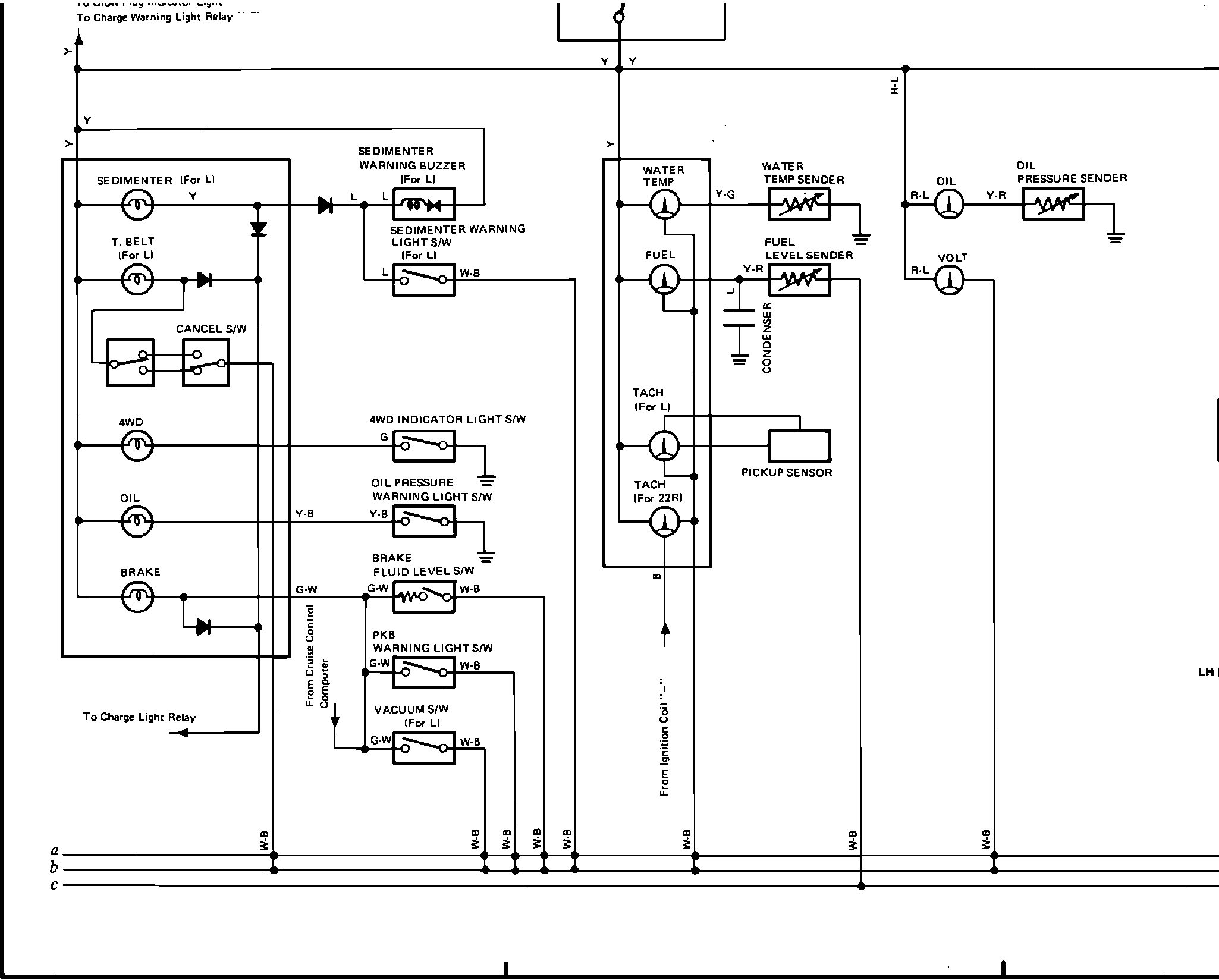

��)��)��)%�)9�)��)/�)Fig. 34b Combination Meter, Back-Up Lights, Seat Belt, Overdrive, Cruise Control, Stop Lights, Turn Signal, Hazard, Horn, and Windshield Wiper & Washer Wiring Diagram:
