D/F Technical Data

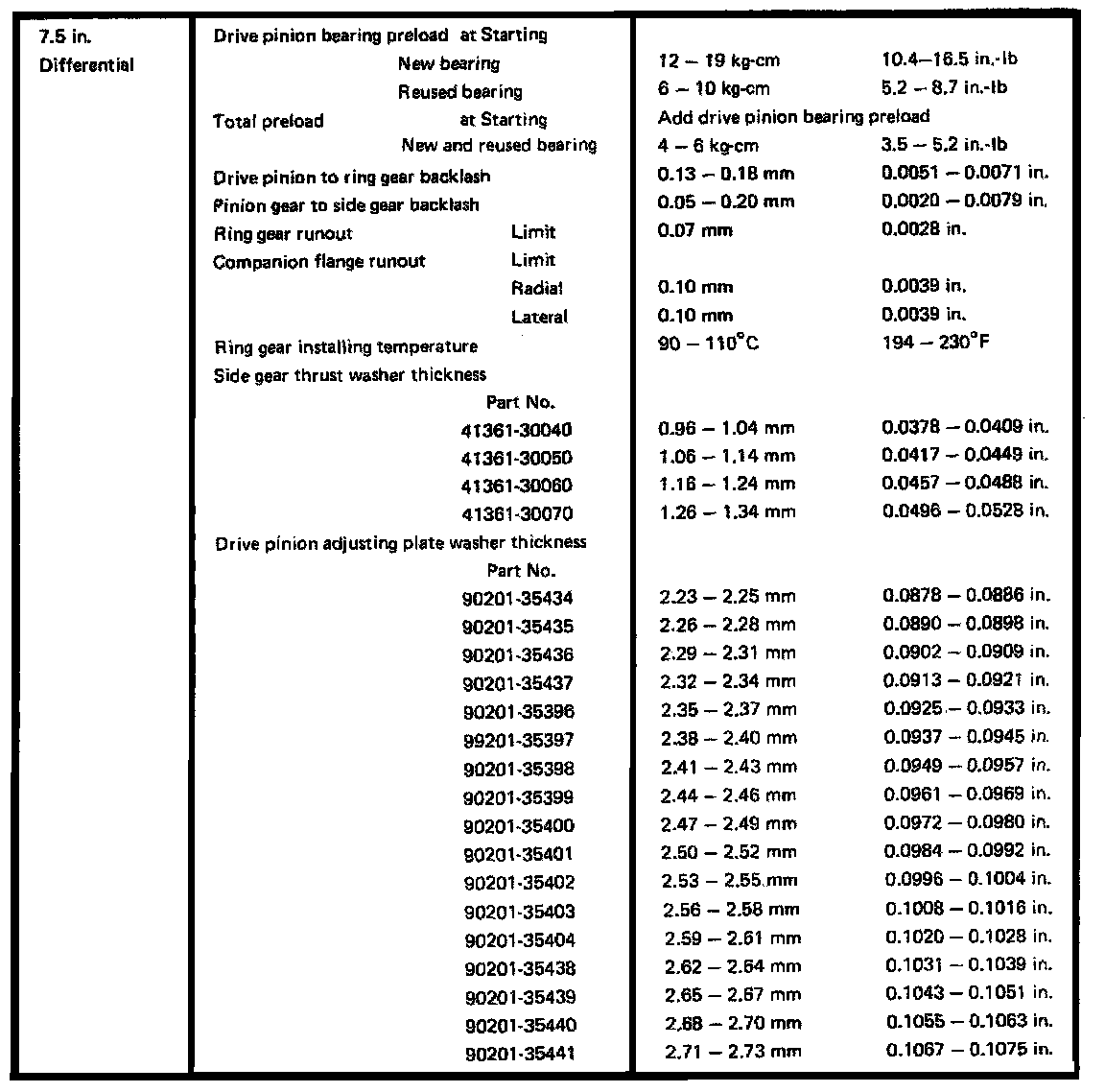

7.5 Inch Differential, Drive Pinion Clearances/Tolerances:

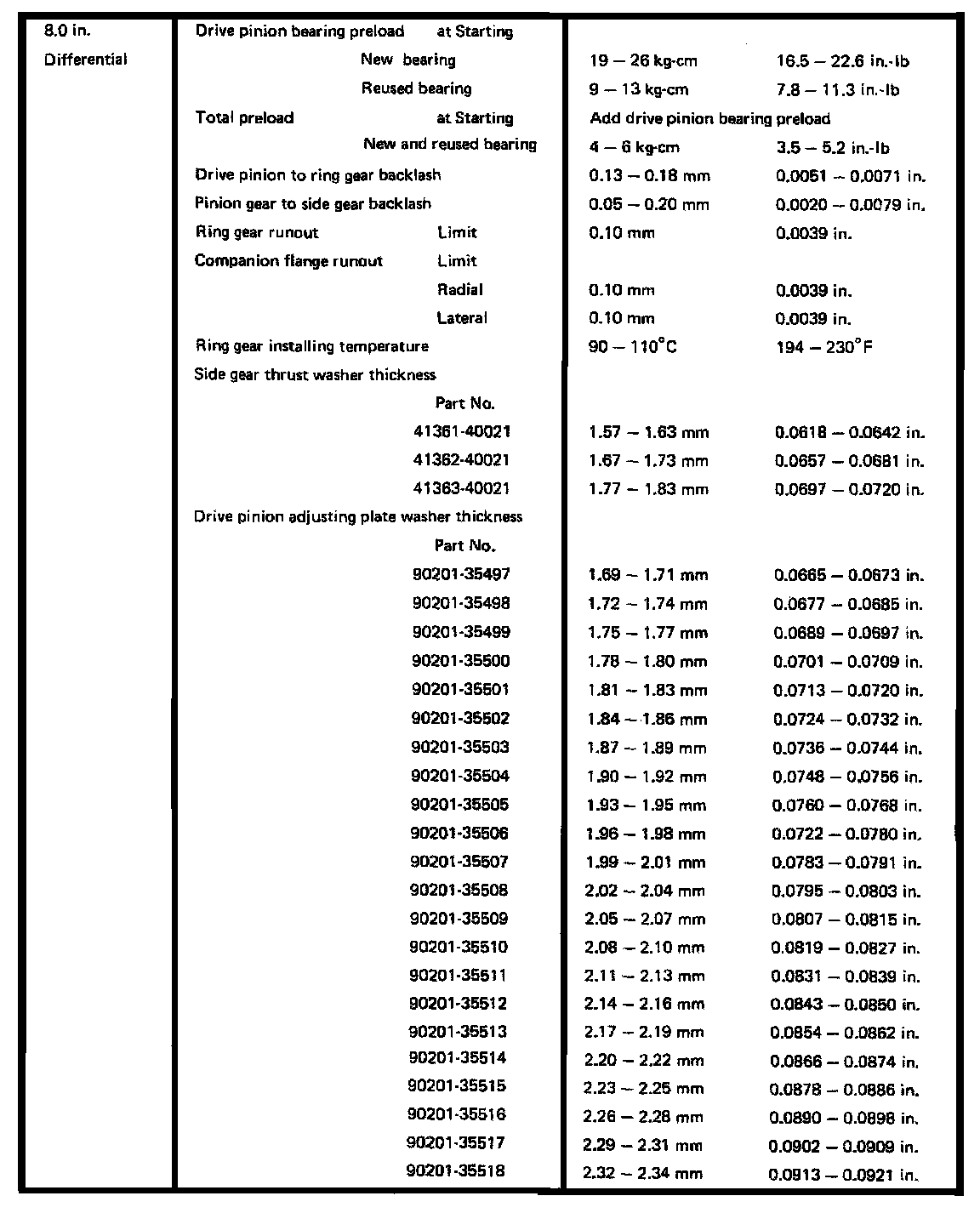

8.0 Inch Differential, Pinion Preload/Thickness:





8.0 Inch Differential, Pinion Preload Shim Thickness:
