A/T Technical Data

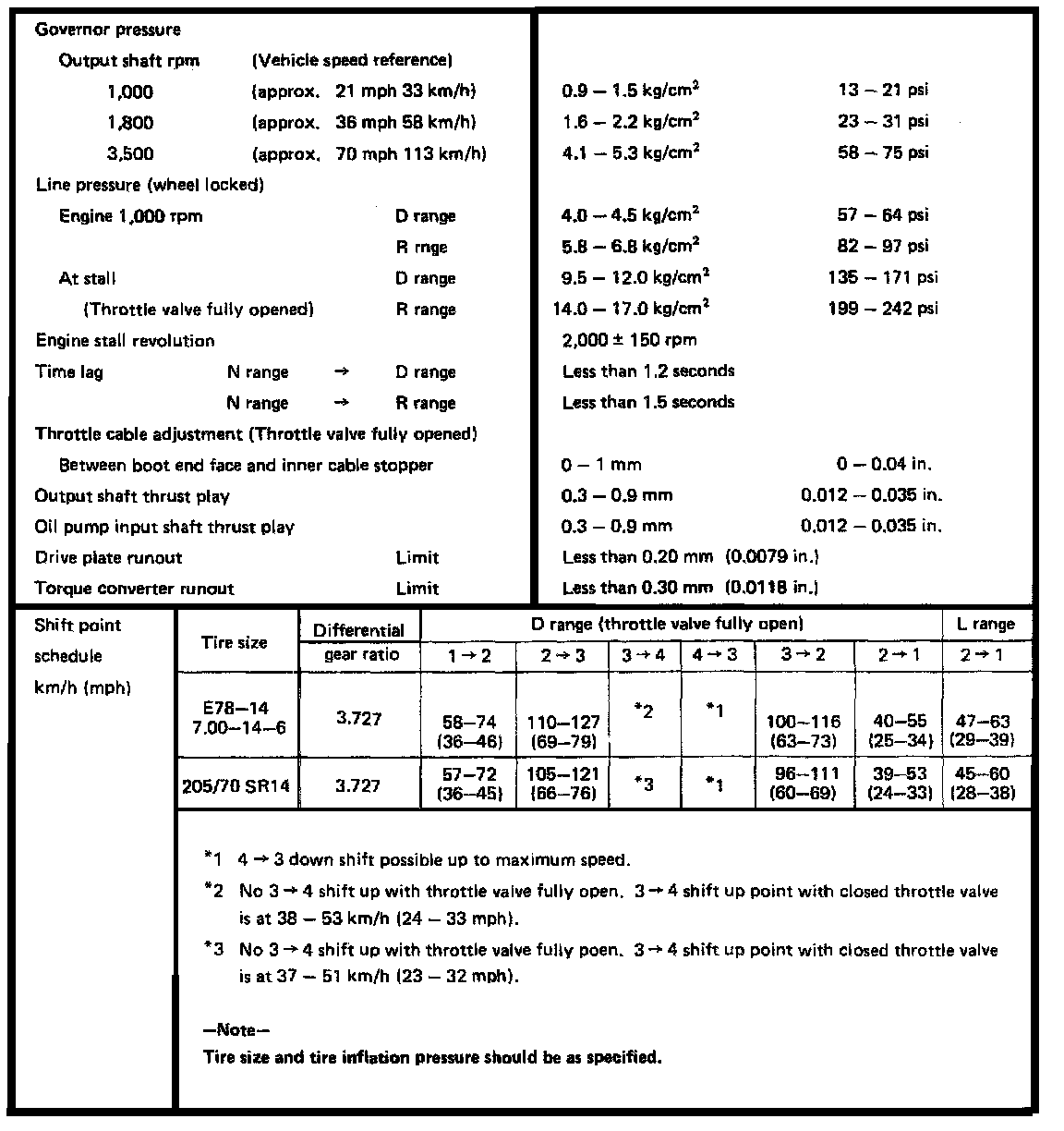

A43D 4-spd A/T, Governor Pressure/Shift Points:

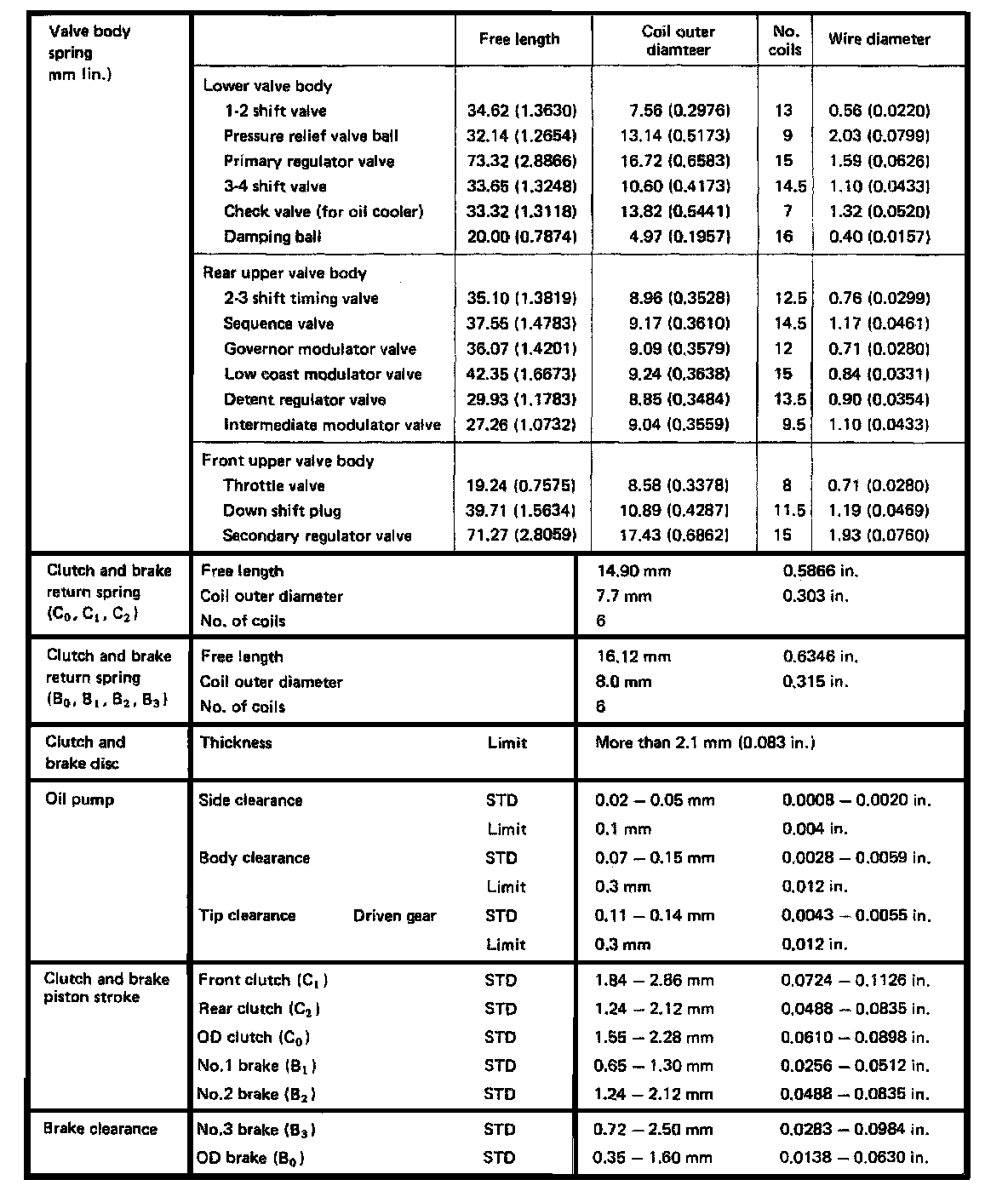

A43D 4-spd A/T, Valve Body/Clutch And Brake:

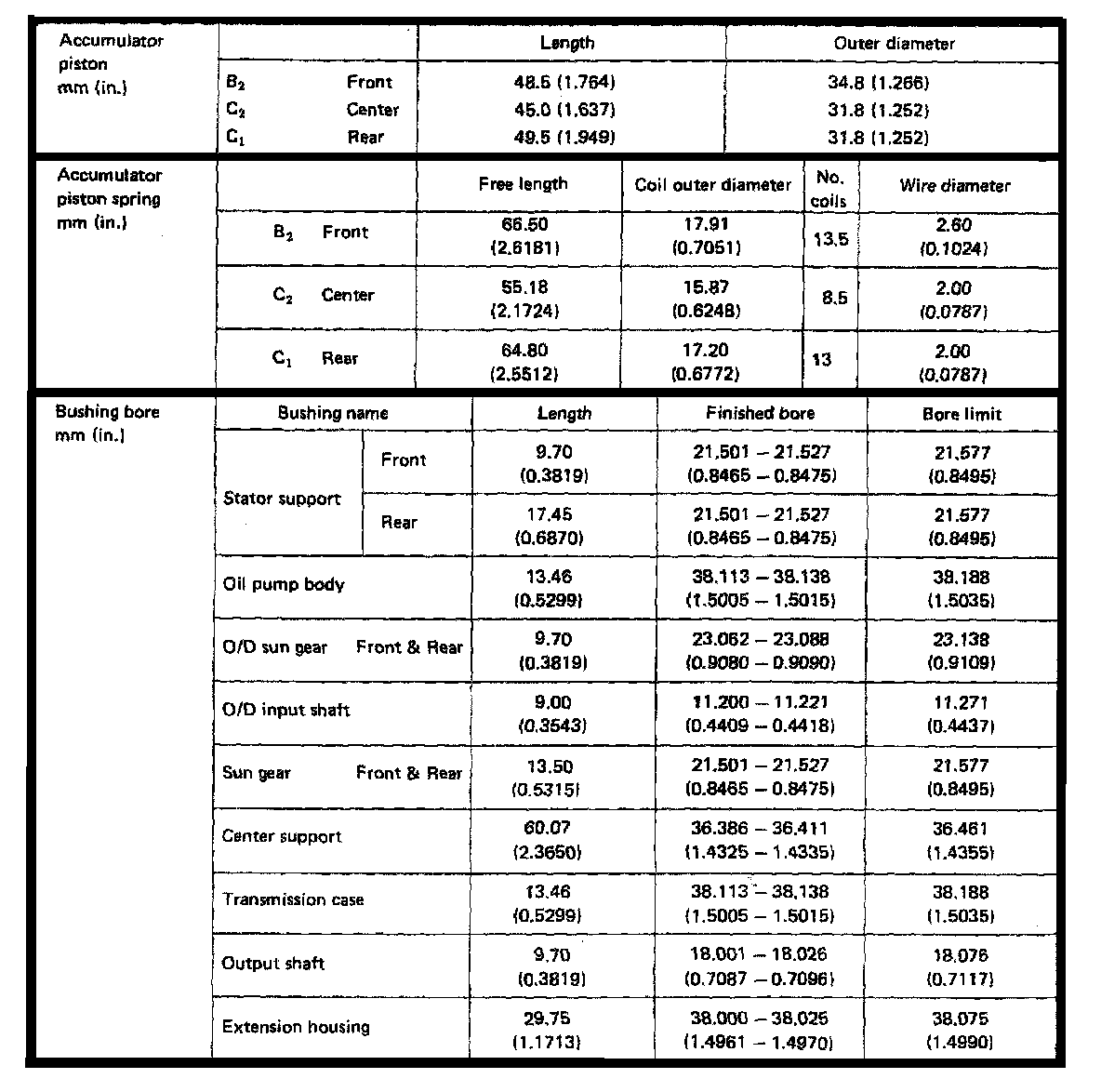

A43D 4-spd A/T, Accumulator Clearance:
