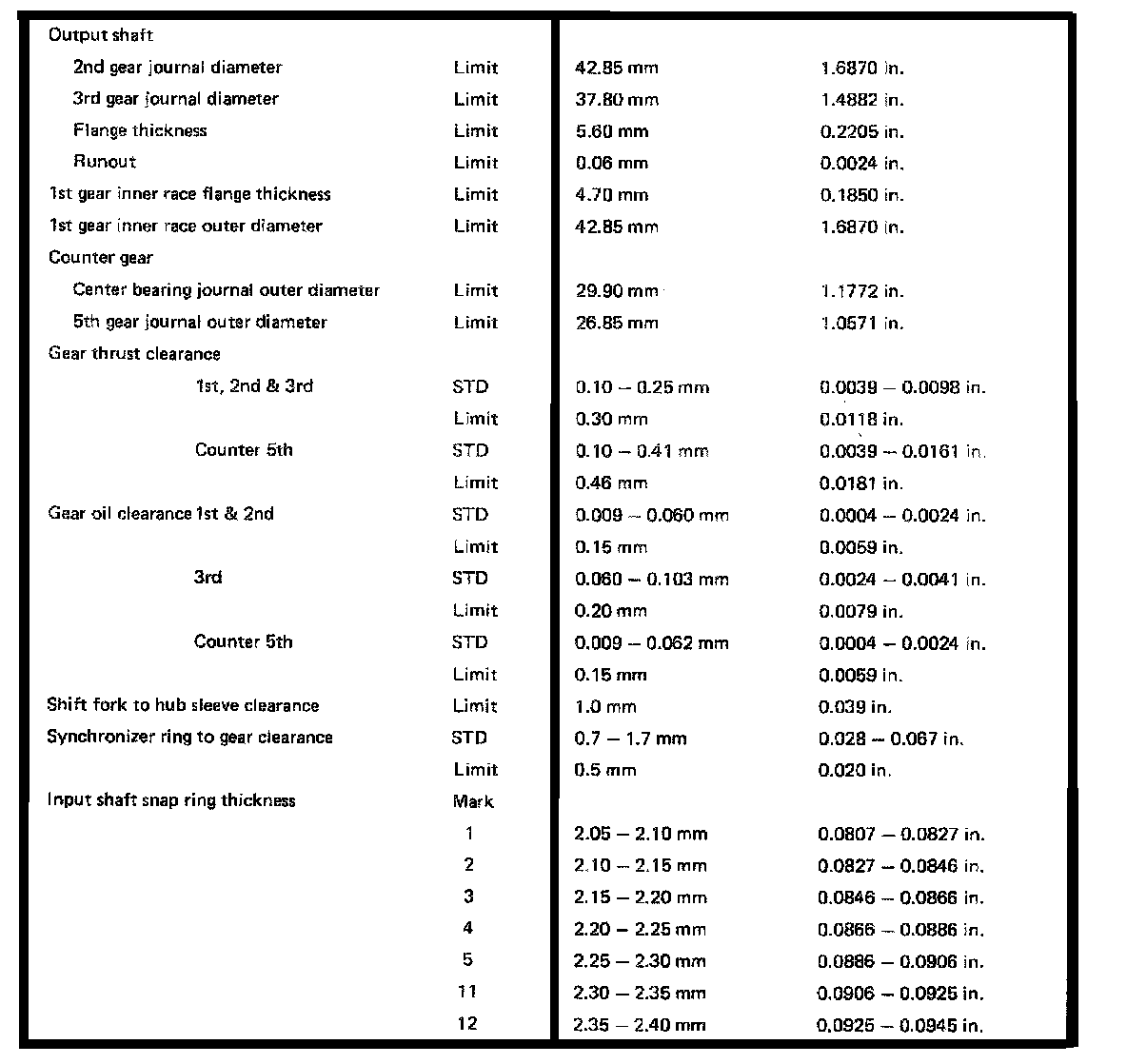

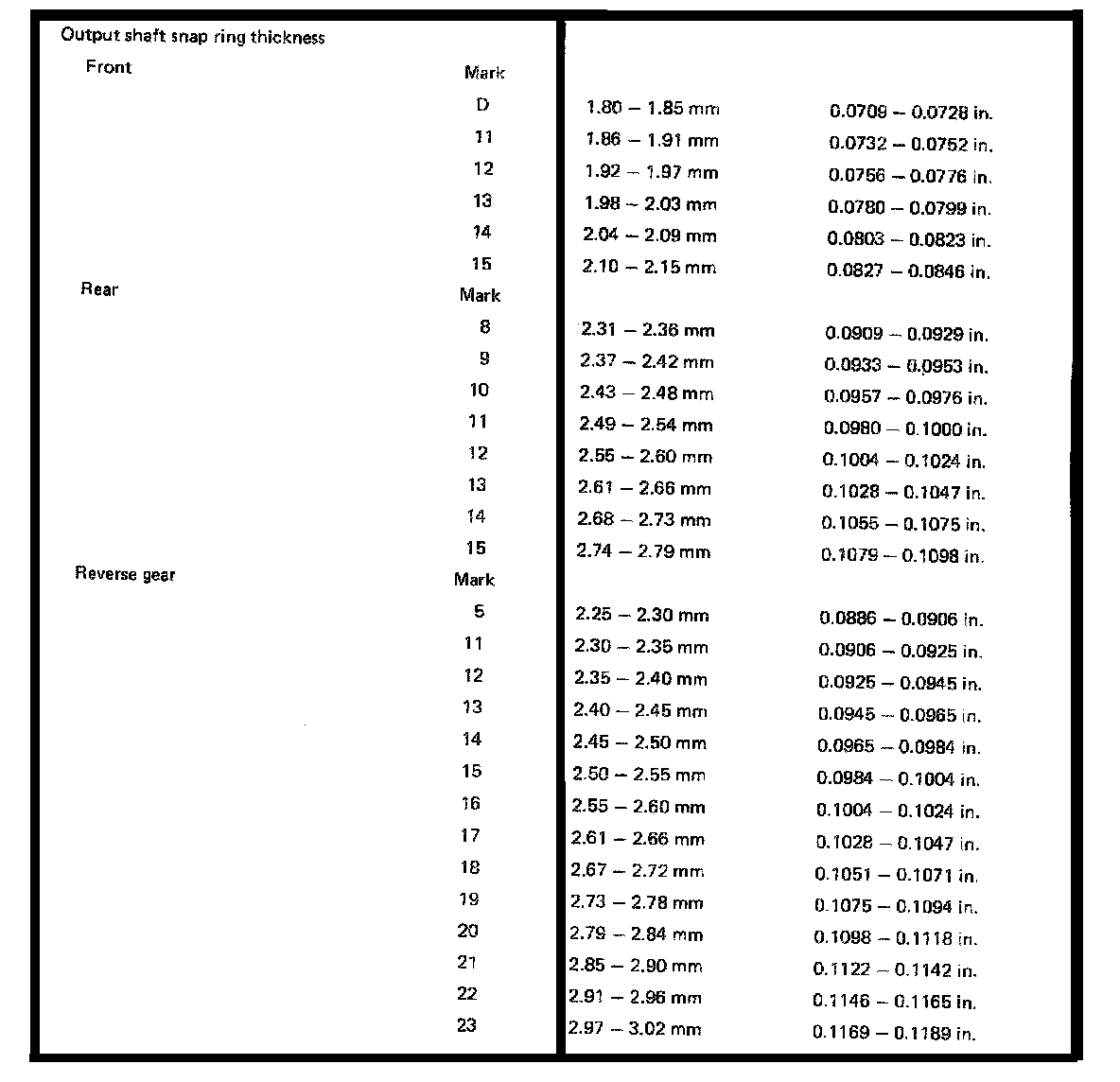

M/T Technical Data

W58 5-spd M/T, Clutch Clearances:





W58 5-spd M/T, Output Shaft/Gear Thickness Clearance:





W58 5-spd M/T, Output Shaft Thickness:





W58 5-spd M/T, Countershaft Thickness:
