Sensor - Radar - Front - Remove And Replace: Remove

  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .

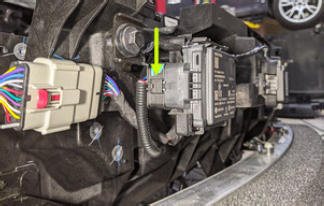

  2. Disconnect the electrical connector from the front radar sensor.
    G15437701Courtesy of TESLA, INC.

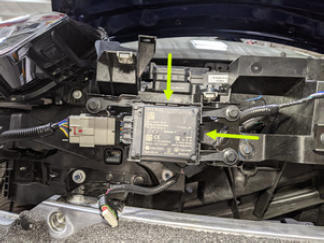

  3. Remove the tabs (x2) that attach the front radar sensor to the front end carrier.
    G15437702Courtesy of TESLA, INC.
