Armrest - Center Console - Remove And Replace: Install

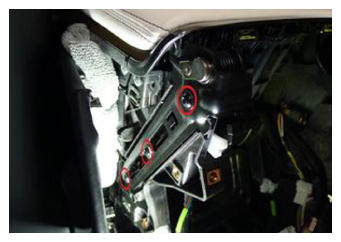

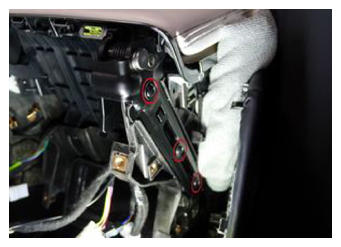

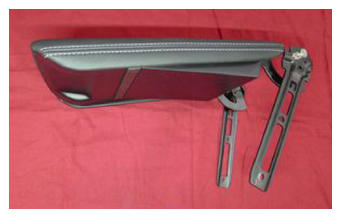

- Install the bolts (x6) that attach the center console armrest to the center console.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

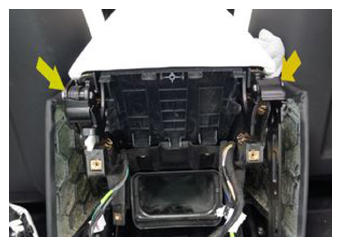

NOTE: Slide the armrest down and align the LH and RH side arms with the center console assembly. - Install the rear center console bright strip. See Bright Strip - Center Console - Rear (Remove And Replace) .
- Install the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace)
.NOTE: The Toolbox routine for the center console air wave does not need to be performed for this procedure.
- Install the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove And Replace) .
- Restore the driver and front passenger seats back to their original position.
- Raise all the windows and close all the doors.
