Sensor - Impact - B-Pillar - LH - Remove And Replace: Install

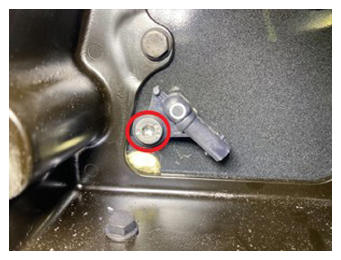

Position the LH B-pillar impact sensor into the vehicle, and then install a new bolt that attaches the sensor to the vehicle.
8 N.m (5.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T30 socket
Courtesy of TESLA, INC.

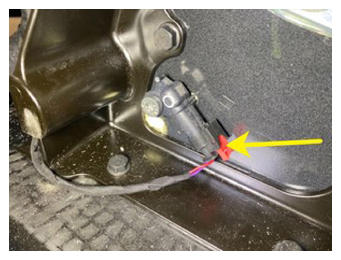

Connect the LH B-pillar impact sensor electrical connector, and then secure the locking tab.

Courtesy of TESLA, INC.
Install the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace) .
Connect LV power. See LV Power (Disconnect and Connect) .
Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
Move the driver seat to the original position.
Calibrate the rear doors.
NOTE: If the "calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
Raise the front windows and close the LH front door.
