Radar - Interior - Remove And Replace: Remove

  1. Release the front portion of the headliner from the body. See Headliner (Remove and Replace) .

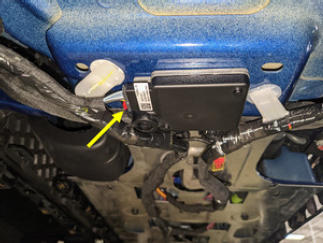

  2. Release the red tab and press the black tab to disconnect the electrical connector from the interior radar.
    G15437656Courtesy of TESLA, INC.

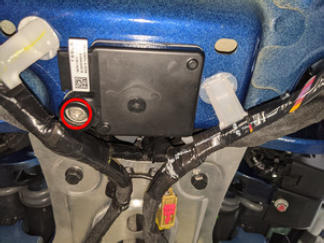

  3. Release the bolt that attaches the interior radar to the body.
    NOTE: The bolt is secured inside the interior radar and cannot be removed.
    G15437657Courtesy of TESLA, INC.

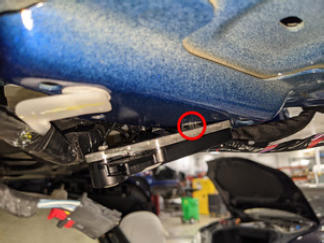

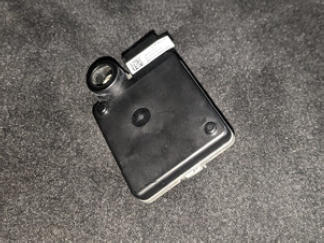

  4. Use a clip prytool to release the clip that attaches the interior radar to the body, then remove the interior radar from the vehicle.
    G15437658Courtesy of TESLA, INC.
    G15437659Courtesy of TESLA, INC.
