Radar - Interior - Remove And Replace: Install

  1. Fasten the clip that attaches the interior radar to the body
    G15437660Courtesy of TESLA, INC.

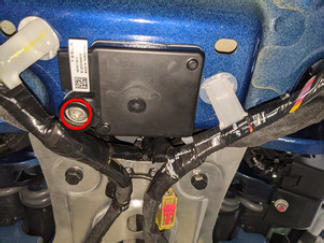

  2. Install the bolt that attaches the interior radar to the body.

    9 N.m (6.6 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 bit
    • Ratchet 1/4in Dr Hex Bit
    G15437661Courtesy of TESLA, INC.

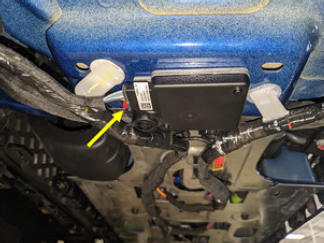

  3. Connect the electrical connector to the interior radar.
    G15437662Courtesy of TESLA, INC.
  4. Install the front portion of the headliner to the body. See Headliner (Remove and Replace) .
