Map Light - LH - Remove And Replace: Remove

  1. Remove the LH and RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  2. Remove the LH and RH sun visor. See Sun Visor - LH (Remove and Replace) .
  3. Remove the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  4. Remove the quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
  5. Release the clips (x5) that attach the headliner at the front of the vehicle.
    NOTE: 5x clips

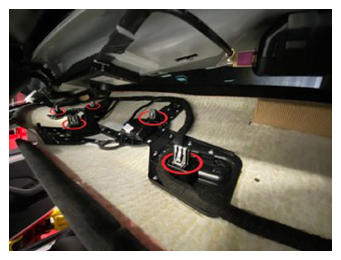

    G15092129Courtesy of TESLA, INC.
  6. Remove the LH map light bezel from the headliner.
    NOTE: 2x tabs, 1x alignment pin. Gently pry around edge of the bezel to release.

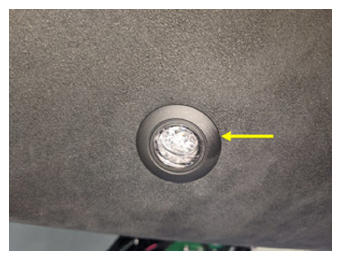

    G15092130Courtesy of TESLA, INC.
  7. Disconnect the LH map light electrical connector.
    NOTE: Locking tab viewable from the rear edge of the front headliner.

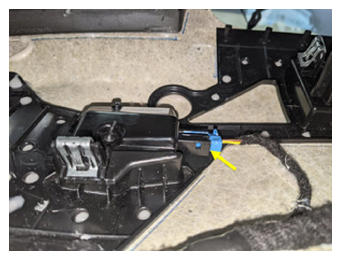

    G15092131Courtesy of TESLA, INC.
  8. Remove the LH map light from the headliner.
    NOTE: 2x tabs. Push up from interior to aid in releasing tabs.

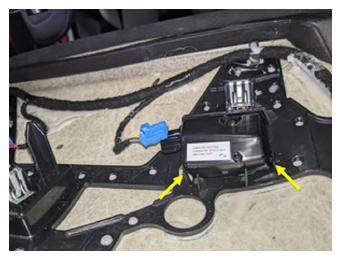

    G15092132Courtesy of TESLA, INC.

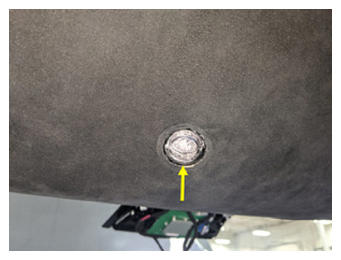

    G15092133Courtesy of TESLA, INC.
