1st Generation Dual Motor/2nd Generation: Removal
- Disconnect 12V power. See DISCONNECT 12V POWER .

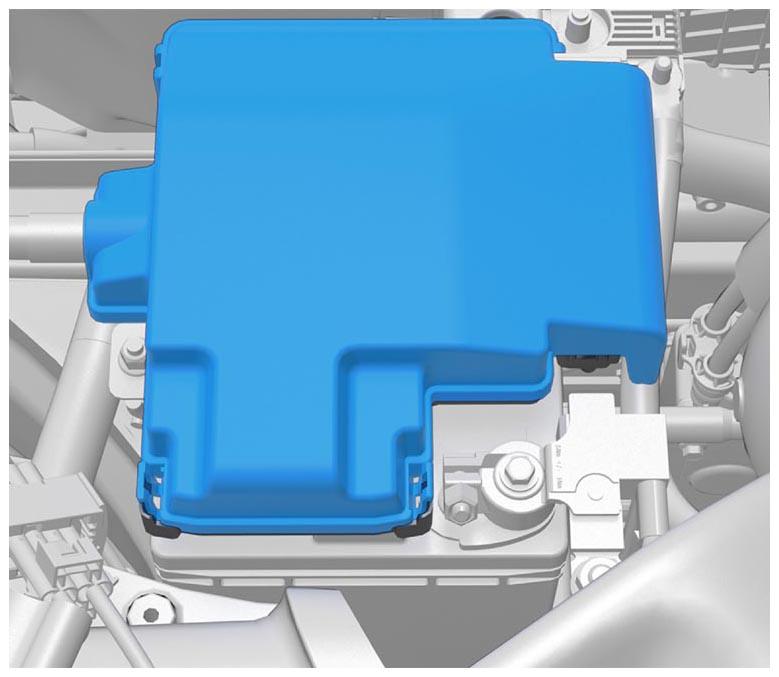

- Remove the fuse box cover.
 Courtesy of TESLA, INC.
|

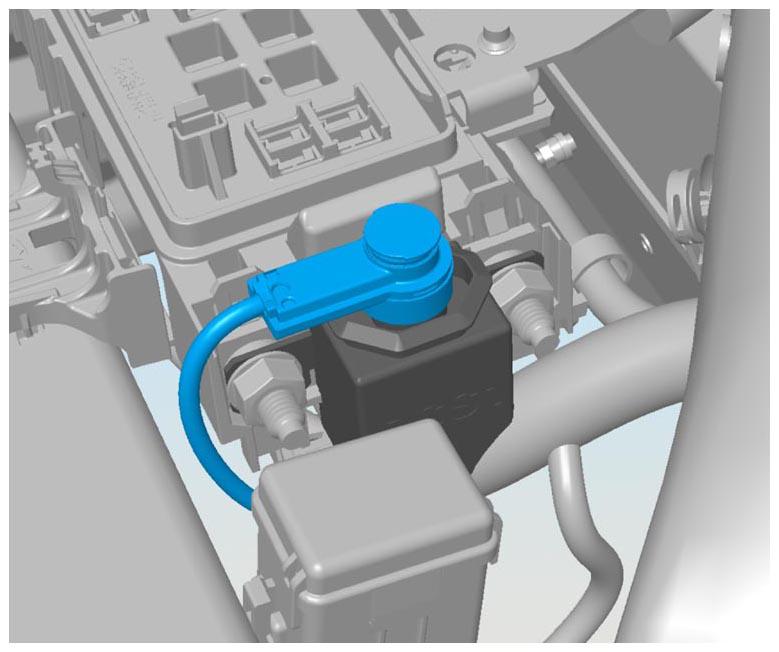

- Disconnect the pyrotechnic battery disconnect harness.
 Courtesy of TESLA, INC.
|

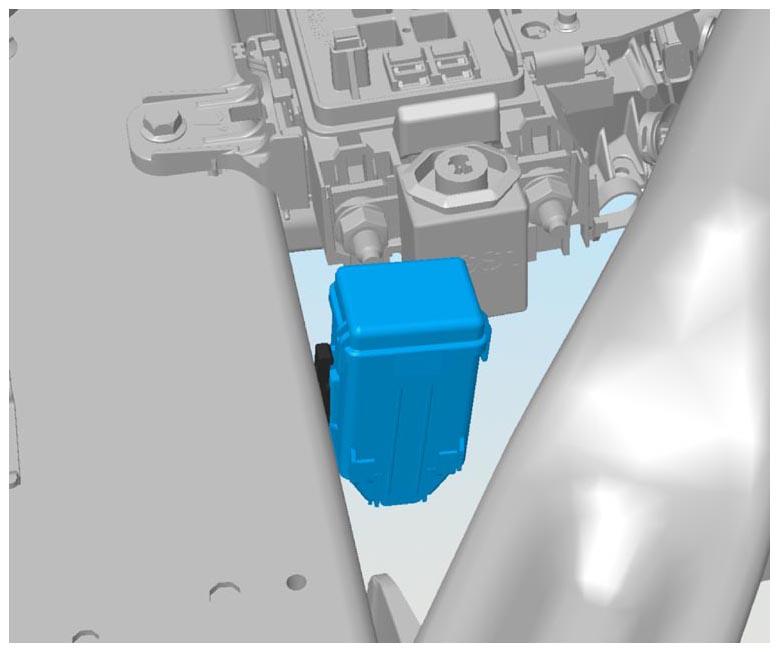

- Release the relay holder from the bracket and move it out of the working area.
 Courtesy of TESLA, INC.
|

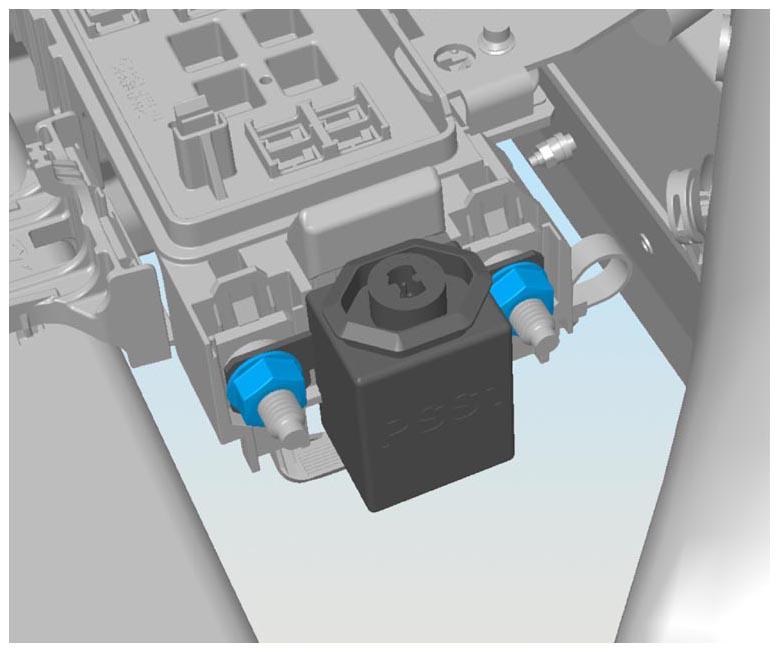

- Remove the nuts (x2) that secure the pyrotechnic battery disconnect (torque 15 N.m).
 Courtesy of TESLA, INC.
|
- Remove the pyrotechnic battery disconnect from the vehicle.
