Buckle Assembly - 3rd Row - LH - Remove And Replace: Removal

  1. Raise 3rd row seats if folded into trunk well.
  2. Position seat belt aside for access to the bolt.

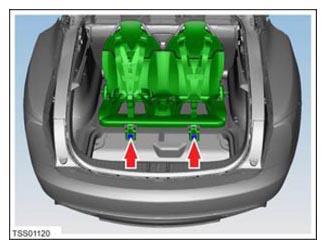

  3. Remove bolt securing 3rd row seat belt buckle to body (torque 40 N.m).
    CAUTION: Replace all patchbolt(s).
  4. De- Latch buckle from seat belt and remove buckle from vehicle.
    G14979901Courtesy of TESLA, INC.
