Sensor Cluster - ESC - Remove And Replace: Removal
- Remove the center console assembly. See Center Console Assembly (Remove and Replace)
.

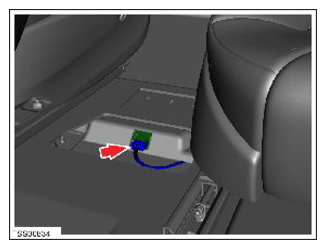

- Disconnect the electrical harness from the ESC sensor cluster connector.
 Courtesy of TESLA, INC.
|

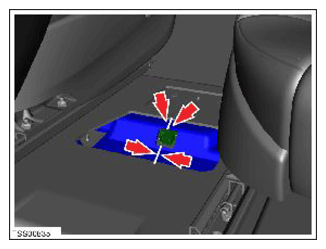

- Carefully cut the acoustic padding covering the ESC sensor cluster.
- Peel back the acoustic padding to expose the ESC sensor cluster.
 Courtesy of TESLA, INC.
|

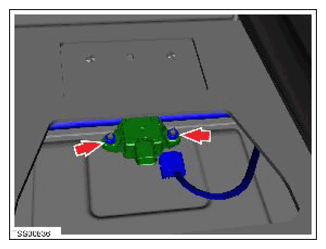

- Remove the nuts (x2) that attach the ESC sensor cluster to the body.
 Courtesy of TESLA, INC.
|

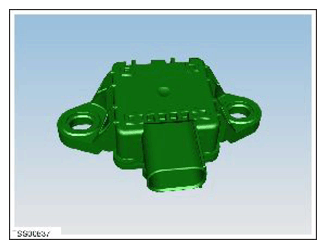

- Remove the ESC sensor cluster from the vehicle.
 Courtesy of TESLA, INC.
|
