Airbag - Knee - Driver - Remove and Install: Install

Installation procedure is the reverse of removal, except for the following:

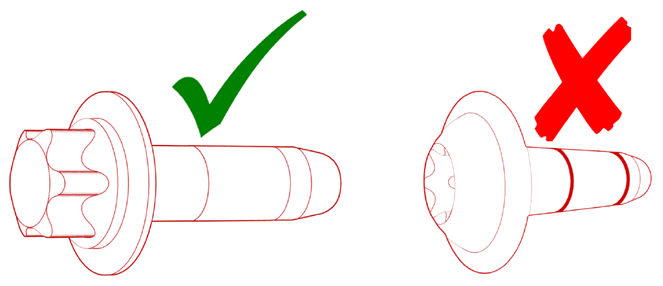

NOTE: Install new Torx External E10 bolts (x4) on the driver knee air bag. Do not use Torx T30 bolts (pictured).

Courtesy of TESLA, INC.

CAUTION: Replace all patchbolts .

Make sure that the clips on the rear edge of the driver knee airbag cover engage the IP carrier.
