2nd Row Center Console Assembly - Remove And Replace: Removal

  1. Fold the RH 2nd row back rest.
  2. Loosen the 2nd row center console tether strap behind the center seat.

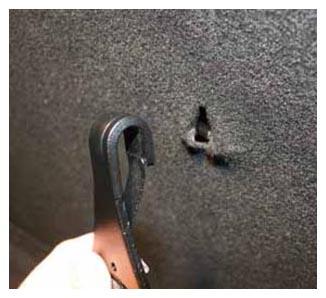

  3. Unclip the tether latch from the child seat anchor.
    G14977091Courtesy of TESLA, INC.

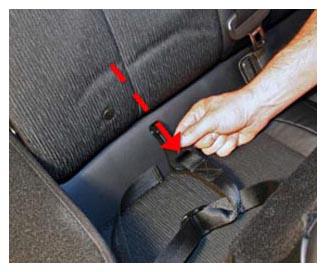

  4. Pull the tether out between the seat and the back rest to the front.
    G14977092Courtesy of TESLA, INC.
  5. Remove the console from the vehicle.
  6. Raise the RH rear seat back.
