Headlight Switch (in Lighting Switch) Inspection

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Reference: HEADLIGHT SWITCH (IN LIGHTING SWITCH) REMOVAL AND INSTALLATION

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

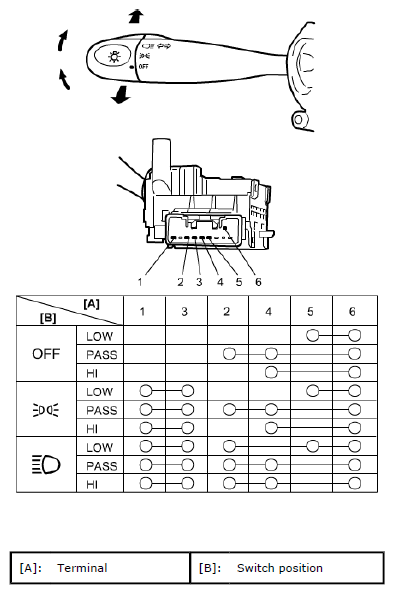

Fig 1: Inspecting Headlight Switch (In Lighting Switch)

Courtesy of SUZUKI OF AMERICA CORP.
