Clutch Master Cylinder Removal and Installation: Removal

  1. Clean around brake master cylinder reservoir cap and extract fluid with syringe or the like from brake master cylinder reservoir.
  2. Disconnect clutch fluid pipe (4) from clutch master cylinder (1), see CLUTCH FLUID PIPE REMOVAL AND INSTALLATION .
  3. Disconnect clutch reservoir hose (2).
  4. Remove push rod from clutch pedal, and then remove clutch master cylinder.

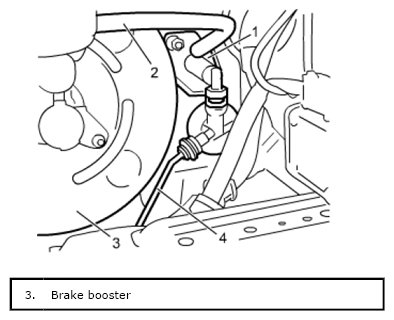

    Fig 1: Identifying Clutch Fluid Pipe, Reservoir Hose And Master Cylinder
    G06528903Courtesy of SUZUKI OF AMERICA CORP.
