Suspension Arm Removal and Installation: Removal

Hoist vehicle and remove front wheel on the side concerned, see WHEEL (WITH TIRE) REMOVAL AND INSTALLATION .
Remove front brake caliper and front brake rotor, see FRONT BRAKE DISC REMOVAL AND INSTALLATION .
Remove tie-rod end, see TIE-ROD END REMOVAL AND INSTALLATION .
Remove clip (2) and suspension arm joint nut (1).

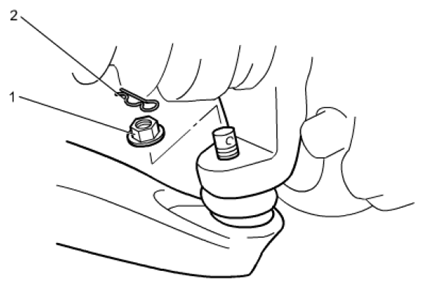

Fig 1: Identifying Clip And Suspension Arm Joint Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove drive shaft nut, then remove front drive shaft (1), see FRONT DRIVE SHAFT ASSEMBLY REMOVAL AND INSTALLATION .
Remove steering knuckle (3) from suspension arm ball joint (2) using ball joint remover (4).

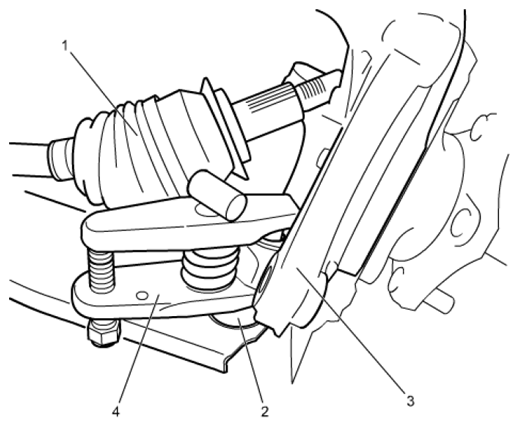

Fig 2: Identifying Steering Knuckle, Suspension Arm Ball Joint And Ball Joint Remover
Courtesy of SUZUKI OF AMERICA CORP.
Remove suspension arm bolts (1) and suspension arm nut (2), then remove suspension arm (3).

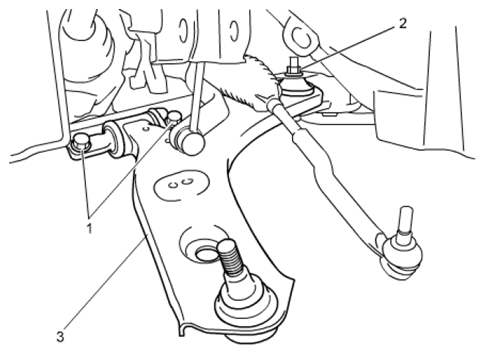

Fig 3: Identifying Suspension Arm Bolts, Suspension Arm Nut And Suspension Arm
