Front Strut Assembly Disassembly and Reassembly: Disassembly

  1. Attach special tool to coil spring as shown. Turn special tool bolts alternately until coil spring tension does not work any more. Rotate the strut assembly around its axis to confirm that the assembly is free from coil spring tension.

    Special Tool

    1. 09943-25010

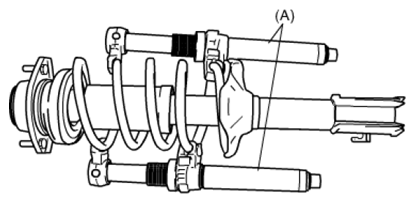

    Fig 1: Attaching Special Tool To Coil Spring
    G06529893Courtesy of SUZUKI OF AMERICA CORP.
  2. While keeping coil spring compressed with special tool, remove strut support rod nut with special tools as shown.

    Special Tool

    1. 09900-00411
    2. 09900-00414
    3. 09941-56510
    Fig 2: Removing Strut Support Rod Nut With Special Tools
    G06529894Courtesy of SUZUKI OF AMERICA CORP.
  3. Disassemble front strut assembly components in the indicated order, see FRONT STRUT ASSEMBLY COMPONENTS .
