Front Suspension System Description

Front suspension system is of a McPherson strut type consisting of a front suspension frame (1), strut assemblies (2), steering knuckles (3), suspension control arms (4) and a stabilizer bar (5).

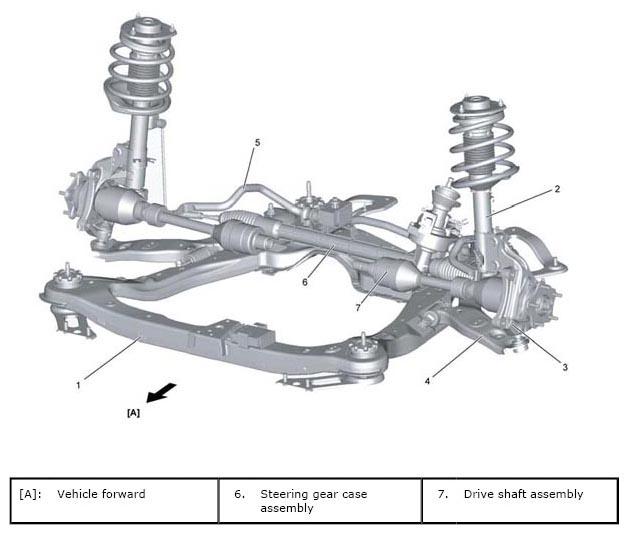

Fig 1: Identifying Front Suspension System Components

Courtesy of SUZUKI OF AMERICA CORP.
