Rear Seat Belt Components

NOTE: The figure shows rear seat belts on driver's side and center. Rear seat belt on passenger's side is the same as that belt on driver's side.

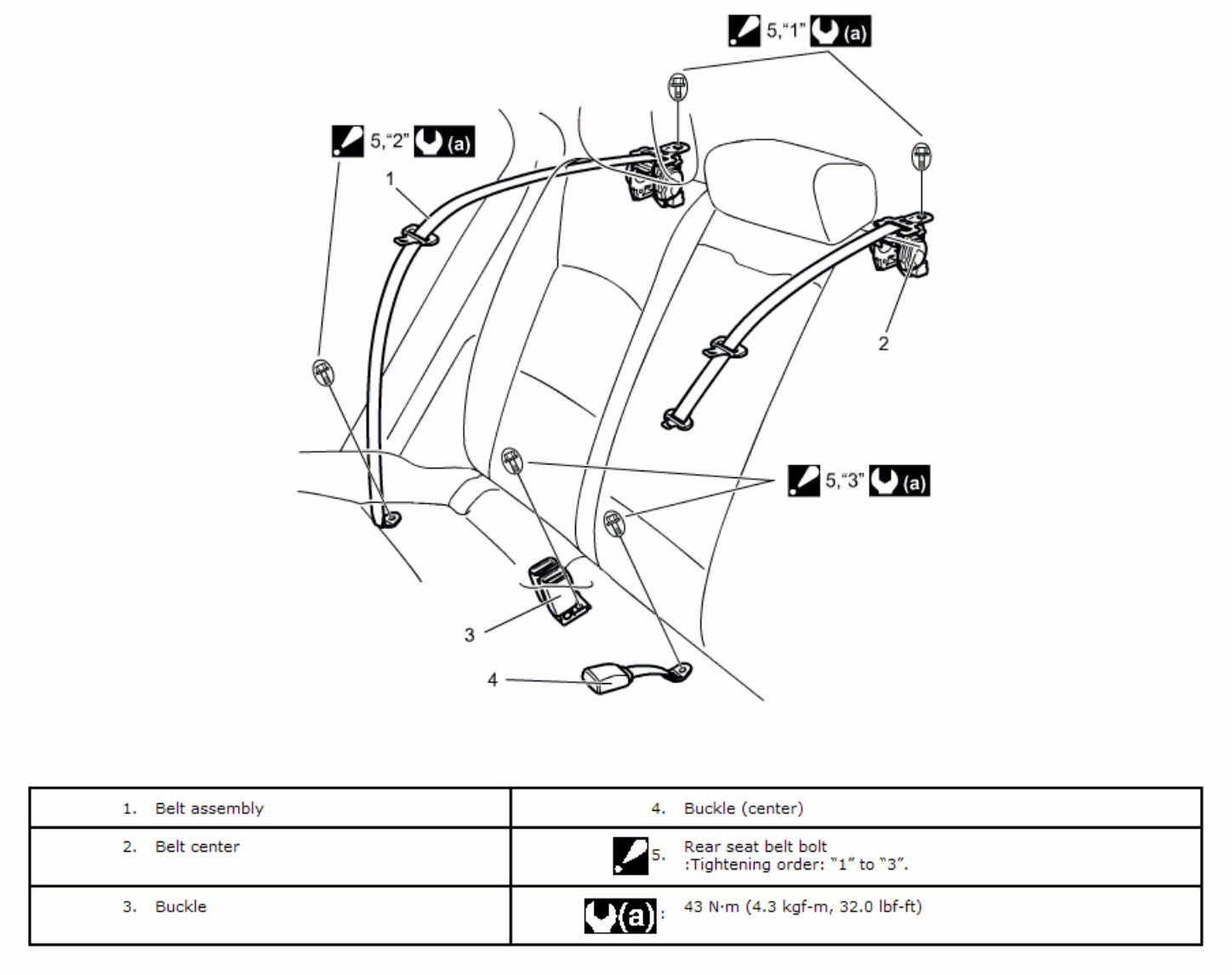

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
