Brake Hoses and Pipes Inspection

Perform this inspection where there is enough light and use a mirror if necessary.

Repair or replace any of these parts if necessary.

CAUTION: Air in the brake system will cause poor braking performance and can lead to an accident. After servicing the brake system, be sure to completely bleed all air out of the system.

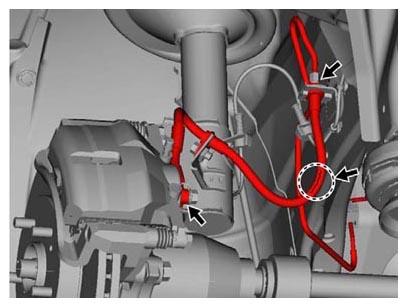

Fig 1: Check Brake Hoses And Pipes For Improper Connections, Leaks, Cracks, Chafing And Other Damage
G06529846Courtesy of SUZUKI OF AMERICA CORP.
