Blower Motor Inspection

Check operation of blower motor (2) when connecting battery positive terminal to terminal "2" and negative terminal to terminal "1" of blower motor connector (1).

If check result is not satisfactory, replace blower motor.

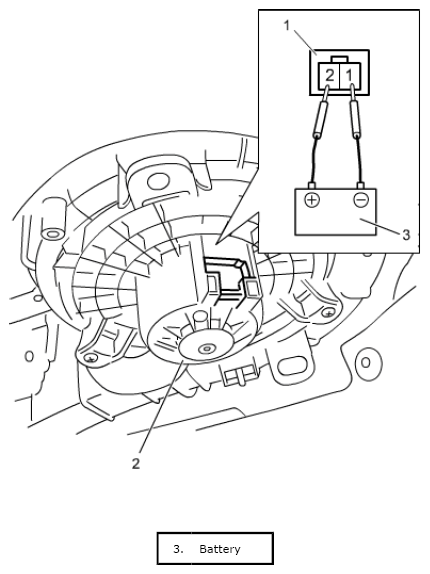

Fig 1: Connecting Battery Terminals To Blower Motor Connector Terminal

Courtesy of SUZUKI OF AMERICA CORP.
