Trunk Lid Opener Switch Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk lid inner handle and trunk lid trim, see TRIM REMOVAL AND INSTALLATION .
Disconnect trunk lid opener switch connector (3) and release connector clip (4).
Remove screws (1).
Release claws and remove trunk lid switch handle (2).

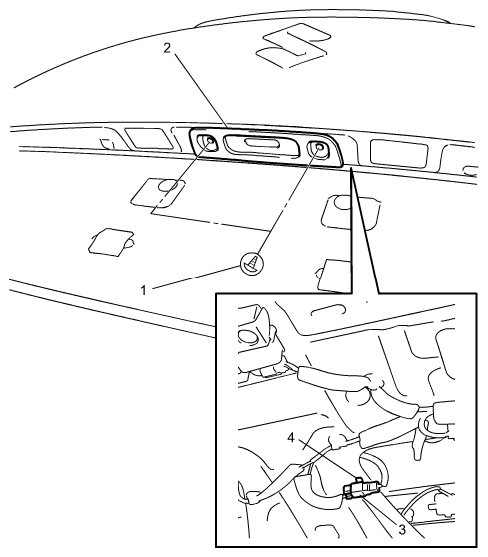

Fig 1: Identifying Trunk Lid Switch Handle, Trunk Lid Opener Switch Connector, Screws And Connector Clip
Courtesy of SUZUKI OF AMERICA CORP.
Remove screws (1) and remove trunk lid opener switch (2).

Fig 2: Identifying Trunk Lid Opener Switch And Screws
Courtesy of SUZUKI OF AMERICA CORP.
