Adjustment Knob Check
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

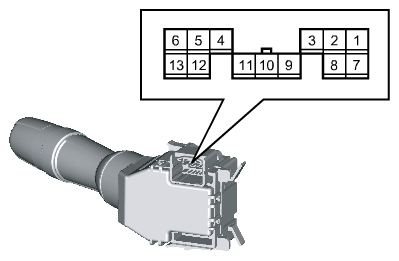

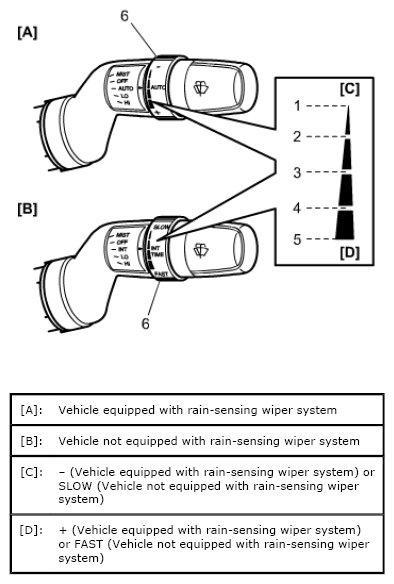

Check resistance between terminal "9" and terminal "12" with adjustment knob (6) set at each position. If check result is not as specified, replace wiper and washer switch.
Wiper interval adjustment switch resistance
WIPER INTERVAL ADJUSTMENT SWITCH POSITION REFERENCE
| Wiper interval adjustment switch position | Resistance value |
|---|---|
| 1 | Approx. 0 kΩ |
| 2 | Approx. 2 kΩ |
| 3 | Approx. 5 kΩ |
| 4 | Approx. 8 kΩ |
| 5 | Approx. 10 kΩ |
