CVT Oil Pan Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Hoist vehicle.
Remove left side engine undercover.
Drain CVT fluid, see CVT Fluid Change .
Remove CVT oil pan (1) and oil pan gasket (2).

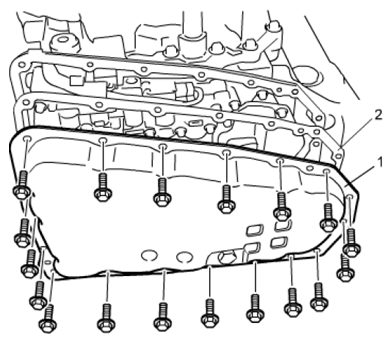

Fig 1: Identifying CVT Oil Pan, Oil Pan Gasket And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
