BCM Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Disable air bag system, see DISABLING AIR BAG SYSTEM .
Remove glove box and passenger side instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
Disconnect connectors and clamps from BCM and fuse box.
Remove nuts (1), and then detach fuse box (2).

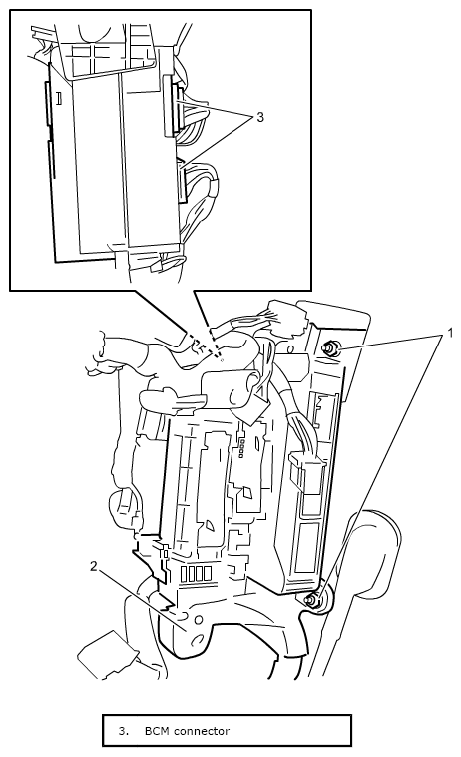

Fig 1: Identifying Fuse Box, Nuts And BCM Connector
Courtesy of SUZUKI OF AMERICA CORP.
Release hooks (1) and remove BCM (2) from fuse box.

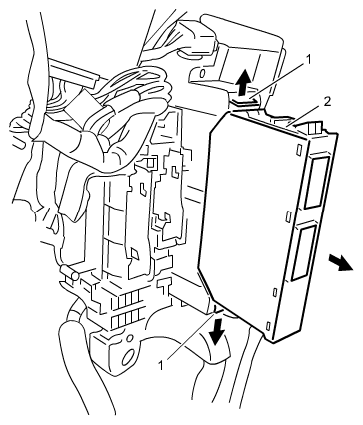

Fig 2: Removing BCM From Fuse Box With Hooks
Courtesy of SUZUKI OF AMERICA CORP.
