Hold-in coil open circuit test

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between magnetic switch "S" terminal (1) and coil case. If there is no continuity, replace magnetic clutch.

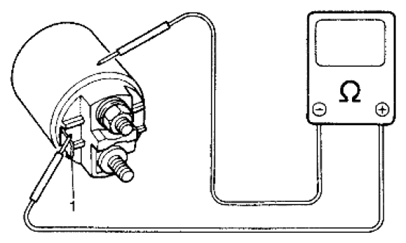

Fig 1: Checking Continuity Between Magnetic Switch S Terminal And Coil Case
G06528286Courtesy of SUZUKI OF AMERICA CORP.
