Driver side ventilation louver

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver side ventilation louver (1) with driver side instrument panel outside garnish (2), see COMBINATION METER REMOVAL AND INSTALLATION .
  2. Release claws (3), and then remove driver side ventilation louver from driver side instrument panel outside garnish.

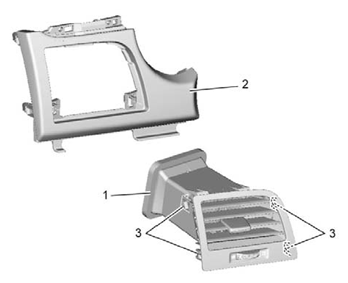

    Fig 1: Identifying Driver Side Ventilation Louver, Driver Side Instrument Panel Outside Garnish And Claws
    G06526764Courtesy of SUZUKI OF AMERICA CORP.
