Expansion Valve Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Recover refrigerant from A/C system referring to "RECOVERY " in Operation Procedure for Refrigerant Charge .
Remove liquid pipe bolt (1), and then remove liquid pipe (3) and suction hose (4) from expansion valve (2).
Remove expansion valve bolts (5), and then remove expansion valve.

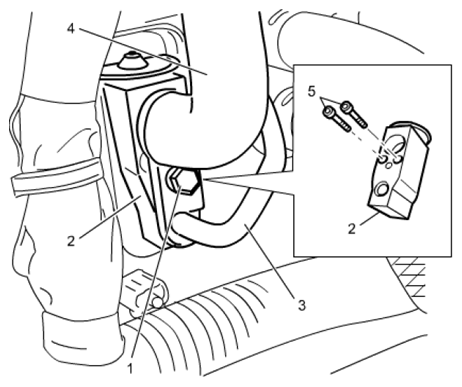

Fig 1: Identifying Liquid Pipe Bolt, Liquid Pipe, Suction Hose, Expansion Valve Bolts And Expansion Valve
Courtesy of SUZUKI OF AMERICA CORP.
