Evaporator Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel with Steering support member, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
  2. Remove HVAC unit, see HVAC Unit Removal and Installation .
  3. Disassemble HVAC unit and then remove evaporator (2).
  4. Remove evaporator temperature sensor (1) from evaporator.

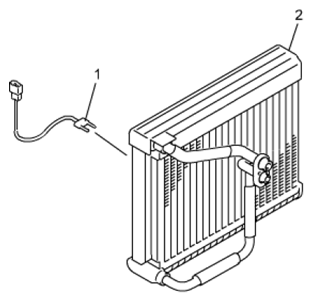

    Fig 1: Identifying Evaporator Temperature Sensor And Evaporator
    G06526725Courtesy of SUZUKI OF AMERICA CORP.
