Center Ventilation Louver Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel (2) with center ventilation louver (3), see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
  2. Remove center ventilation louver from instrument panel by removing screws (1).

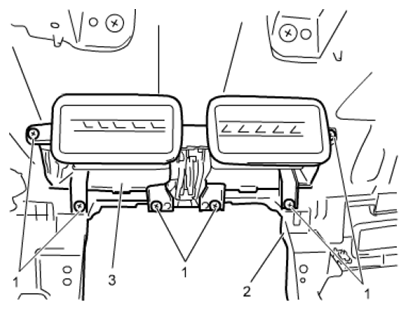

    Fig 1: Identifying Instrument Panel, Screws And Center Ventilation Louver
    G06526763Courtesy of SUZUKI OF AMERICA CORP.
