Blower Motor Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove passenger side instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
Remove screw (1), and then remove passenger side foot duct (2) from HVAC unit.

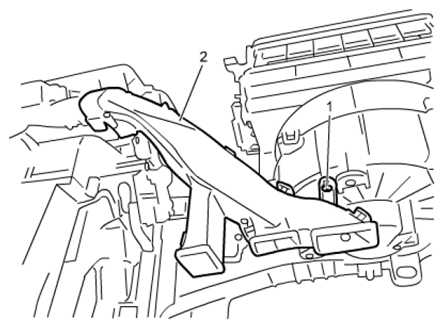

Fig 1: Identifying Passenger Side Foot Duct And Screw
Courtesy of SUZUKI OF AMERICA CORP.
Remove air hose (1).
Disconnect connector (2).
Remove blower motor (4) by removing screws (3) from HVAC unit.

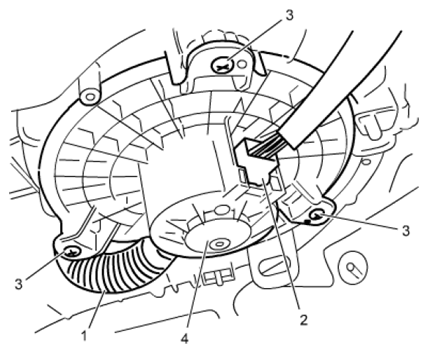

Fig 2: Identifying Blower Motor, Screws, Air Hose And Connector
Courtesy of SUZUKI OF AMERICA CORP.
