Clearance Between Armature Plate and Magnet Clutch Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check clearance "a" between armature plate (2) and magnet clutch pulley (3) using feeler gauge (1).
If check result is not as specified, adjust clearance by putting shim(s) on A/C compressor shaft.
Standard clearance between armature plate and magnet clutch

"a": 0.3 - 0.6 mm (0.002 - 0.024 in.)

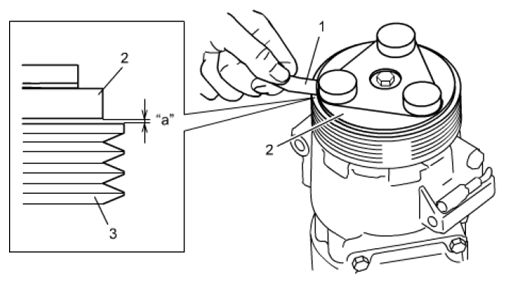

Fig 1: Checking Clearance Between Armature Plate And Magnet Clutch Pulley Using Feeler Gauge
Courtesy of SUZUKI OF AMERICA CORP.
