Oil Pump Drive Sprocket Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check oil pump drive sprocket (2) for cracks or any damage.

Replace crankshaft (1) if defective conditions are found.

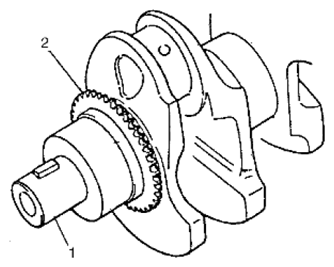

Fig 1: Identifying Oil Pump Drive Sprocket And Crankshaft
G06527615Courtesy of SUZUKI OF AMERICA CORP.
