Main Bearing, Crankshaft and Cylinder Block Components

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

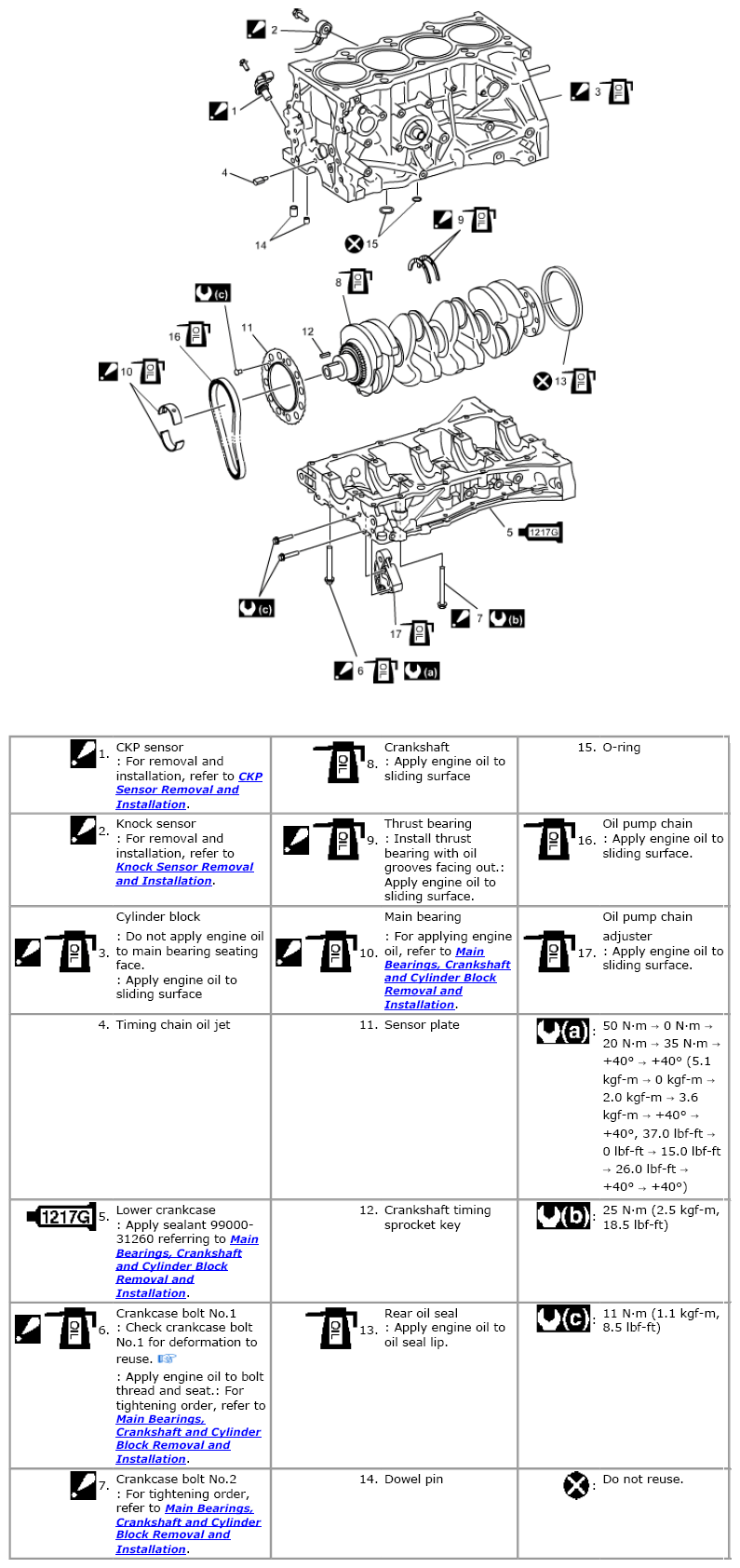

Fig 1: Identifying Main Bearing, Crankshaft And Cylinder Block Components
G06527585Courtesy of SUZUKI OF AMERICA CORP.
