Intake Manifold Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove engine cover.
Remove throttle body assembly, see Throttle Body Assembly Removal and Installation .
Remove engine cover bolt (1).
Disconnect the following connectors and hoses.
- EVAP canister purge valve connector (2)
- Brake booster hose (3)
- PCV valve hose (4)
- Purge hose (5)
- IMT valve actuator connector (6)
- IMT valve actuator clamp (7)
- Engine harness bracket (8)
- Engine harness clamp (Intake manifold lower side) (9)

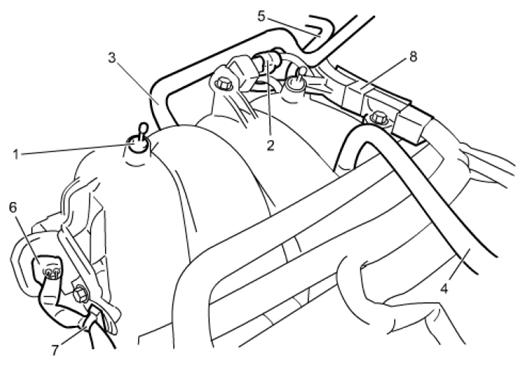

  Fig 1: Identifying Purge Hose And Brake Booster Hose
  Courtesy of SUZUKI OF AMERICA CORP.

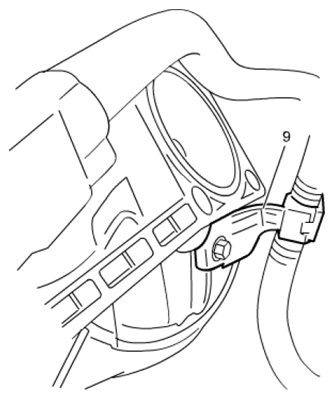

  Fig 2: Identifying Engine Harness Clamp (Intake Manifold Lower Side)
  Courtesy of SUZUKI OF AMERICA CORP.
Remove intake manifold (1) and gasket (2) from cylinder head.

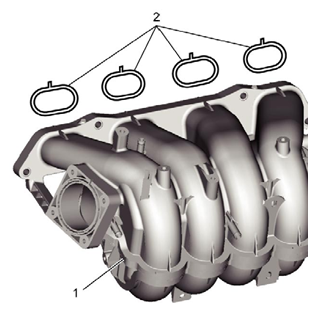

Fig 3: Identifying Intake Manifold And Gasket
Courtesy of SUZUKI OF AMERICA CORP.
