Air Cleaner Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure for installation noting the following points:

Align matchmark of air cleaner outlet hose and air cleaner suction hose when installing, see AIR CLEANER COMPONENTS .

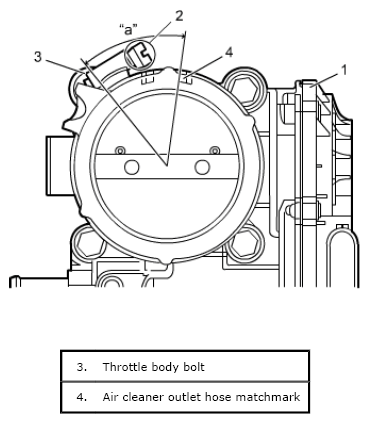

Install throttle body (1) side clamp bolt head (2) within specified range "a" shown below and tighten it to specified torque, see AIR CLEANER COMPONENTS .

Fig 1: Identifying Air Cleaner Outlet Hose And Air Cleaner Suction Hose
Courtesy of SUZUKI OF AMERICA CORP.
Tighten clamps and bolts to specified torque, see AIR CLEANER COMPONENTS .
