CAN communication signal
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

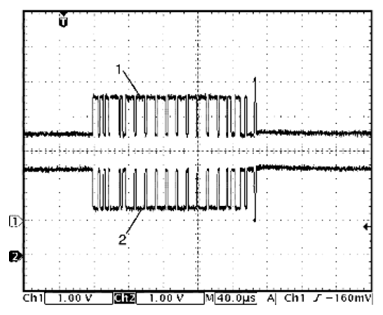

CAN communication signal (High) (1):
CAN COMMUNICATION TERMINAL REFERENCE
| Channel | Probe | Terminal No. |
|---|---|---|
| 1 | + | E01-4 (ESP® control module) |
| - | C01-58 |
CAN communication signal (Low) (2):
CAN COMMUNICATION TERMINAL REFERENCE
| Channel | Probe | Terminal No. |
|---|---|---|
| 2 | + | E01-19 (ESP® control module) |
| - | C01-58 |
Measurement condition
- Engine: Stop
- Ignition mode: ON
