Brake Pedal Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument panel, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
Remove steering column, see STEERING COLUMN REMOVAL AND INSTALLATION .
Disconnect brake light switch connector (1).

Fig 1: Identifying Brake Light Switch Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove clip (2) and clevis pin (3) from cylinder push rod clevis (1).

Fig 2: Identifying Clip, Clevis Pin And Cylinder Push Rod Clevis
Courtesy of SUZUKI OF AMERICA CORP.
Loosen pedal shaft nut (1).
Remove brake pedal (2) by pulling out pedal shaft (3).
Remove pedal pad (4) from brake pedal, if necessary.

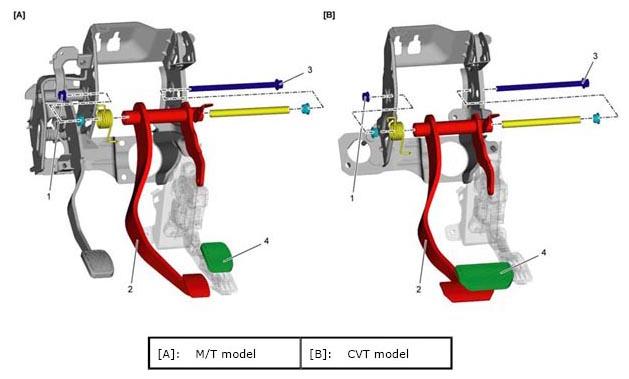

Fig 3: Identifying Pedal Shaft Nut, Brake Pedal With Pad
Courtesy of SUZUKI OF AMERICA CORP.
