Brake Pedal Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure noting the following points.

Apply grease to inside of clevis hole in brake pedal (1), cylindrical side face of both pedal bushings (2), and brake pedal spring (3).
"A": Grease 99000-25050 (SUZUKI Super Grease E)
Tighten pedal shaft nut (4) to specified torque.
Tightening torque

Pedal shaft nut (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)

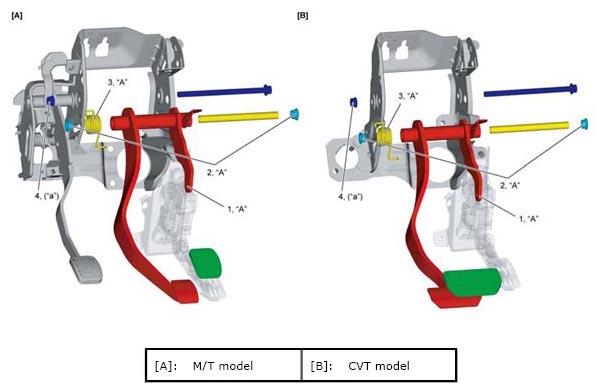

Fig 1: Identifying Pedal Shaft Nut And Brake Pedal Spring
Courtesy of SUZUKI OF AMERICA CORP.
Insert clevis pin into holes in the clevis and brake pedal from right side.
Check brake pedal free height and brake pedal play.
- Brake pedal free height: Brake Pedal Free Height Inspection
- Brake pedal play: Brake Pedal Play Inspection
Adjust installation position of brake light switch, see BRAKE LIGHT SWITCH INSPECTION .
