Brake Pedal Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column, see STEERING COLUMN REMOVAL AND INSTALLATION .
  2. Remove instrument panel, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
  3. Disconnect brake light switch connector.
  4. Remove battery.
  5. For M/T model, disconnect clutch master cylinder, see CLUTCH MASTER CYLINDER REMOVAL AND INSTALLATION .
  6. For CVT model, remove brake pedal bracket nut (1) located in engine compartment.

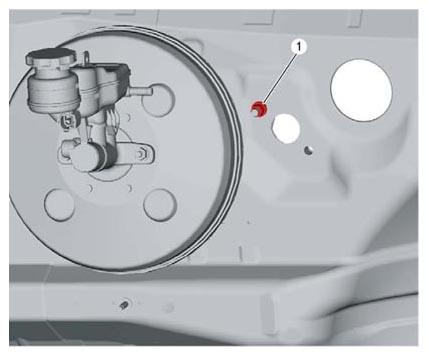

    Fig 1: Identifying Brake Pedal Bracket Nut
    G06528673Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove clip (2) and clevis pin (3) from cylinder push rod clevis (1).

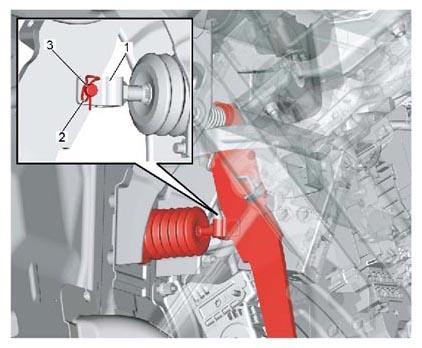

    Fig 2: Identifying Clevis Pin And Cylinder Push Rod Clevis With Clip
    G06528674Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove brake pedal bracket bolts (1) and brake booster nuts (2).

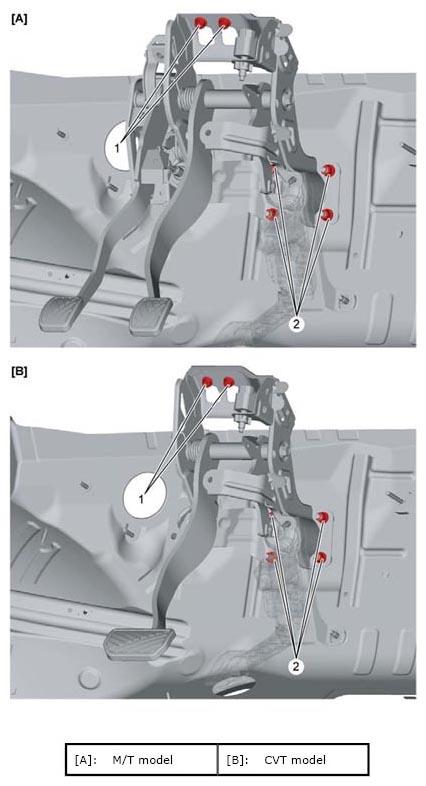

    Fig 3: Identifying Brake Pedal Bracket Bolts And Brake Booster Nuts
    G06528675Courtesy of SUZUKI OF AMERICA CORP.
  9. Remove brake booster from dash panel, see BRAKE BOOSTER REMOVAL AND INSTALLATION .
  10. Remove accelerator pedal bracket, see ACCELERATOR PEDAL ASSEMBLY (INCORPORATING APP SENSOR) REMOVAL AND INSTALLATION .
  11. Remove brake pedal and clutch pedal assembly or brake pedal assembly.

    M/T model: Brake pedal and clutch pedal assembly

    CVT model: Brake pedal assembly
