Brake Master Cylinder Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Clean external area of brake master cylinder assembly.
Depress brake pedal several times to release vacuum in brake booster.
Disconnect fluid level switch connector (1) from reservoir.
Remove battery.

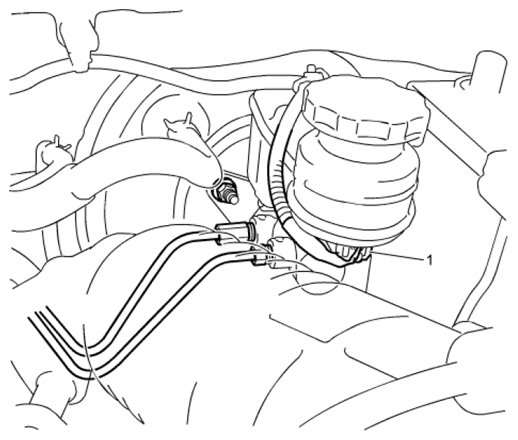

Fig 1: Identifying Fluid Level Switch Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove brake fluid in reservoir, see Brake Fluid Replacement .
Using special tool, loosen flare nuts and disconnect brake pipes (1) from brake master cylinder.
Special Tool

: 09950-78220

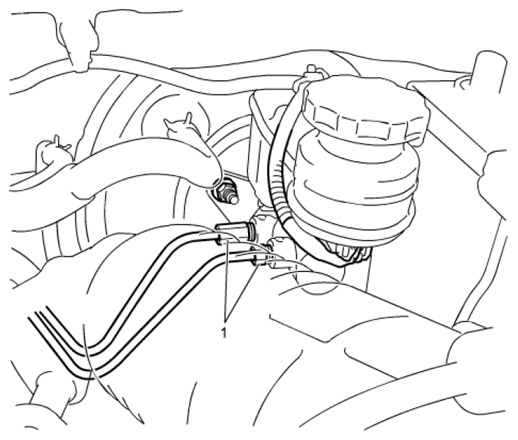

Fig 2: Identifying Brake Pipes
Courtesy of SUZUKI OF AMERICA CORP.
Remove brake master cylinder fixing nuts (1).

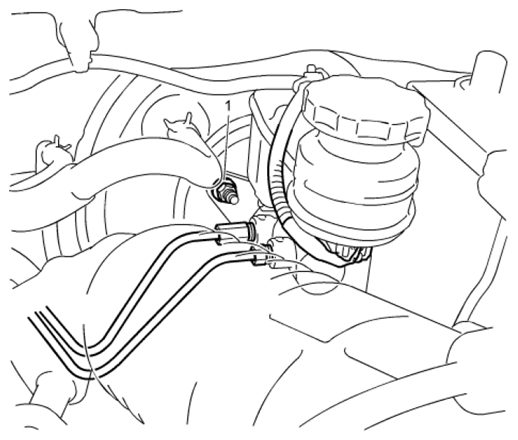

Fig 3: Identifying Brake Master Cylinder Fixing Nuts
Courtesy of SUZUKI OF AMERICA CORP.
