Rear Brake Disc Inspection

Reference: REAR BRAKE DISC REMOVAL AND INSTALLATION

Measure deflection of rear brake disc at the point 10 mm inside from its edge using special tools and repair or replace the disc if defective.

Rear rear brake disc deflection

Limit: 0.10 mm (0.004 in.)

Special Tool

1. 09900-20607
2. 09900-20701

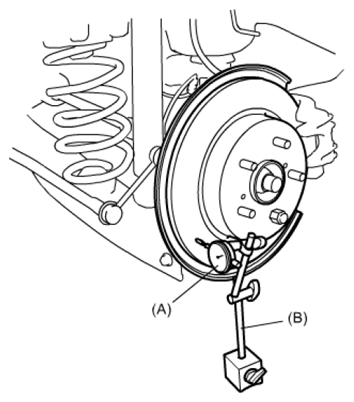

Fig 1: Measuring Deflection Of Rear Brake Disc

Courtesy of SUZUKI OF AMERICA CORP.

Measure thickness of rear brake disc with micrometer. If thickness is less than limit, replace the disc.

Rear rear brake disc thickness "a"

Standard: 12 mm (0.47 in.)

Limit: 11 mm (0.43 in.)

Fig 2: Measuring Thickness Of Rear Brake Disc With Micrometer

Courtesy of SUZUKI OF AMERICA CORP.
