Front Brake Pad Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: FRONT BRAKE PAD ON-VEHICLE INSPECTION

Hoist vehicle and remove front wheel.
Remove front brake caliper pin bolts (1).

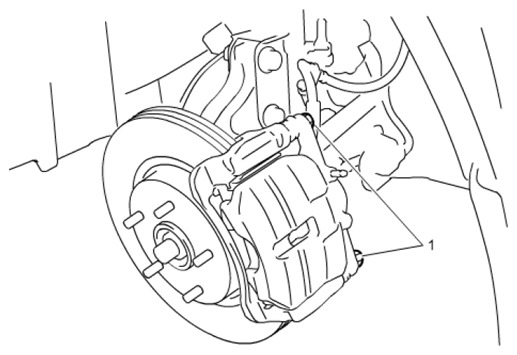

Fig 1: Identifying Front Brake Caliper Pin Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove front brake caliper (1) from front brake caliper carrier (2).
NOTE:
- Hang removed front brake caliper (1) with a wire hook (4) to prevent brake flexible hose from bending, twisting excessively or being pulled.
- Do not operate brake pedal with brake pads removed.
Check for leakage of brake fluid when removing brake pads and repair brake caliper if leakage is found.
Remove brake pads (3) and pad springs (5) from front brake caliper carrier (2).

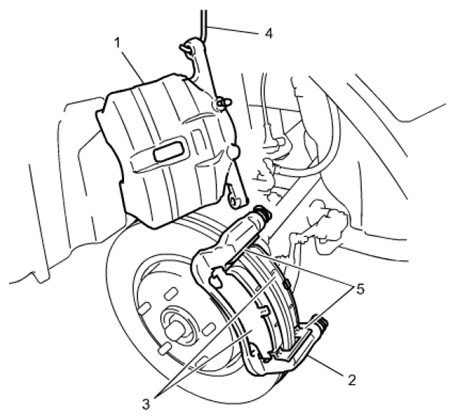

Fig 2: Identifying Brake Pads And Pad Springs With Front Brake Caliper Carrier
