Water Pump Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable from battery.
  2. Drain coolant, see Cooling System Draining .
  3. Remove accessory drive belt, see ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION .
  4. Remove engine wire harness bracket referring to Step  2) in "Removal" under Thermostat Removal and Installation
  5. Remove exhaust manifold, see EXHAUST MANIFOLD REMOVAL AND INSTALLATION .
  6. Remove oil level gauge and oil level gauge guide referring to Step  5) in "Removal" under Oil Pan and Oil Pump Strainer Removal and Installation
  7. Disconnect radiator outlet hose from thermostat cap.
  8. Remove heater outlet pipe (2) from water pump (1).
  9. Remove water pump (1) from cylinder block.

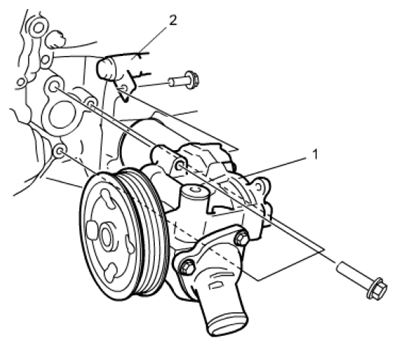

    Fig 1: Identifying Heater Outlet Pipe And Water Pump
    G06528248Courtesy of SUZUKI OF AMERICA CORP.
  10. Remove thermostat if necessary, see Thermostat Removal and Installation .
