Radiator Cooling Fan Operation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Connect scan tool to DLC (1) with ignition mode of keyless push start system in "OFF".
Special Tool
1. SUZUKI scan tool (SUZUKI-SDT)

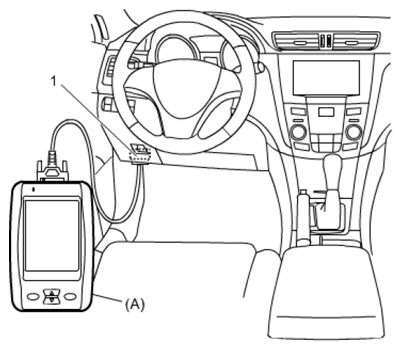

Fig 1: Connecting Scan Tool To DLC
Courtesy of SUZUKI OF AMERICA CORP.
Push engine switch to change ignition mode to "ON" and clear DTC, see DTC CLEARANCE .
Select the "Radiator Fan" function in "Active Test".

Check radiator cooling fan operation at low, mid and high modes.

If any abnormality is found, check cooling fan control system referring to RADIATOR COOLING FAN CONTROL SYSTEM CHECK .

Radiator cooling fan operation

RADIATOR COOLING FAN OPERATION CHART

	Main fan motor	Sub fan motor
OFF	OFF	OFF
Low mode	Low speed	Low speed
Mid mode	OFF	High speed
High mode	High speed	High speed
