Radiator Cooling Fan Motor
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

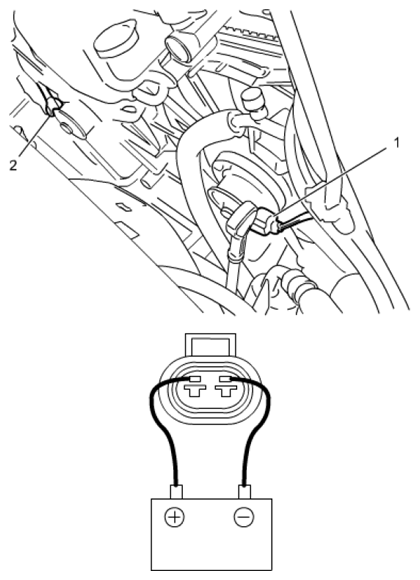

- Disconnect main fan motor connector (2) and sub fan motor connector (1).
- Connect each fan motor connector and battery as shown in figure respectively.
- Check each radiator cooling fan motor for smooth rotation.
If any abnormality is found, replace corresponding radiator cooling fan motor
